Key Features:

• Four Analog Output Channels: The 1794-OE4 provides four channels for analog output, offering flexibility in controlling various devices and systems.
• Wide Range of Output Signals: Capable of producing signals from 0 to 20 mA, 4 to 20 mA, +/- 10VDC, and 0 to 10 VDC, this module is suitable for a broad spectrum of applications.
• High Resolution and Accuracy: With a 12-bit resolution and support for terminal bases like 1794-TB2, -TB3, -TB3S, -TB3T, -TB3TS, and -TBN, the 1794-OE4 ensures precise control and reliable performance.

Technical Highlights:

• Manufacturer: Rockwell Automation
• Conversion Type: Pulse Width Modulation
• Data Format: Left justified, 16-bit 2’s complement
• Resolution: 12 bits plus sign (Voltage: 2.56mV/cnt, Current: 5.13µA/cnt)
• Brand: Allen-Bradley

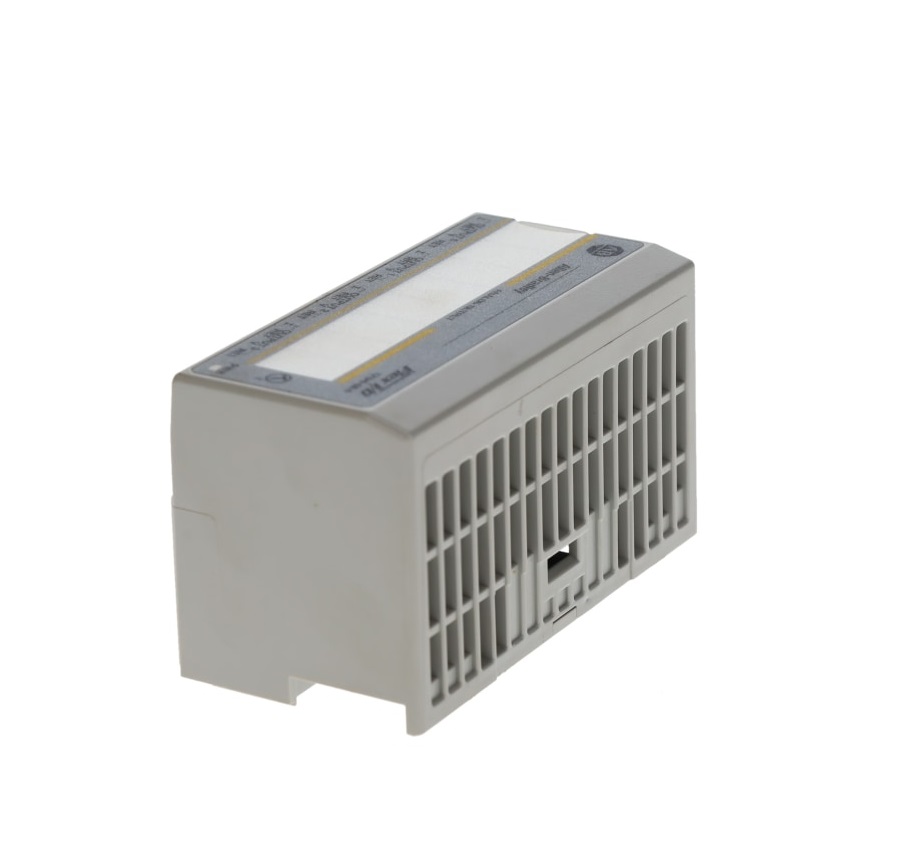

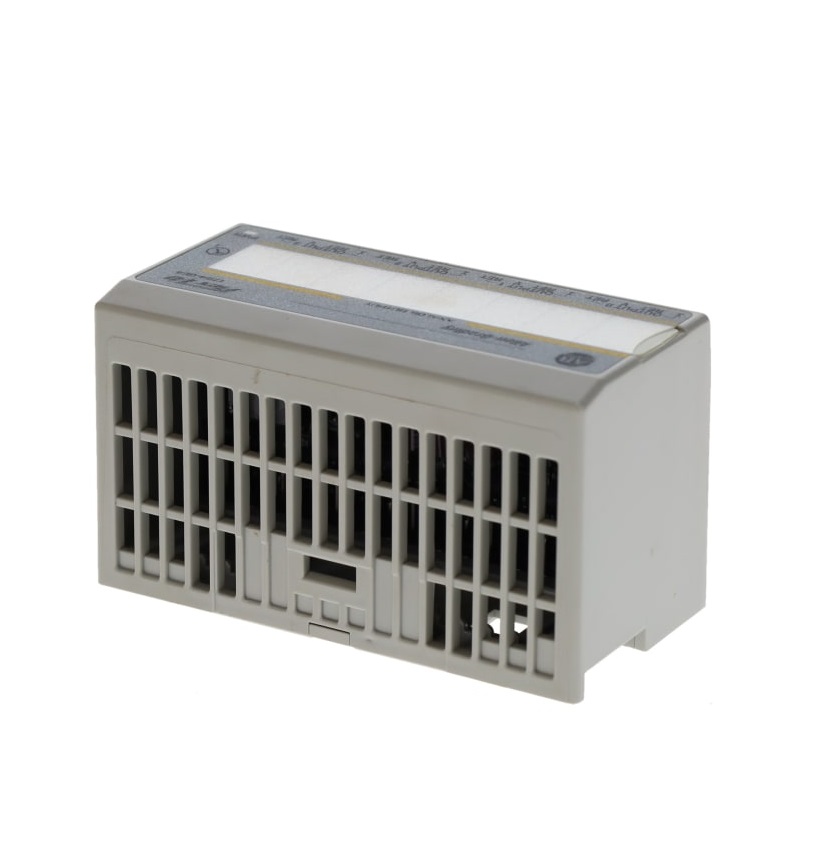

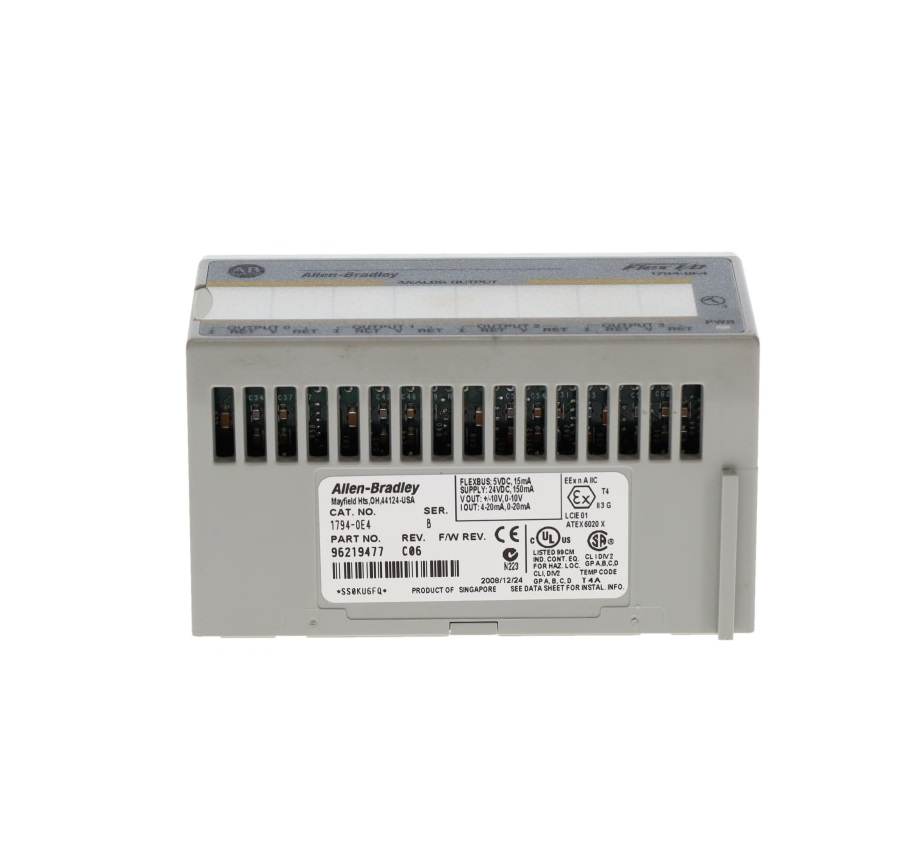

• Product Description: Flex IO High-Density Analog Output Module
• Outputs: 4 Single-ended
• Output Type: 0 to 20 mA; 4 to 20 mA; +/- 10VDC; 0 to 10 VDC
• Conversion Rate: 1.024ms maximum all channels
• Terminal Base: Compatible with various terminal bases for flexible installation options
• Indicators: 1 green/red power/status indicator for easy monitoring
• External DC Supply: 24V DC
• Operating Temperature: 0 to 55°C (32 to 131°F)

Why Choose the 1794-OE4?

• Versatile Compatibility: Use the 1794-OE4 with Flex I/O communication adapters including Ethernet, ControlNet, Profibus, and Remote I/O for seamless integration into your existing network.
• User Configurable Channels: Design your output channels to meet the specific requirements of your control applications, whether it’s for Variable Frequency Drives (VFD), control valves, or other final control elements.
• DIN Rail Mounting: The 1794-OE4 is designed for DIN rail mounting, ensuring easy installation and integration into your control panels.
• Robust Construction: Built to withstand the rigors of industrial environments, the 1794-OE4 operates within a wide temperature range and offers vibration resistance for reliable long-term performance.
