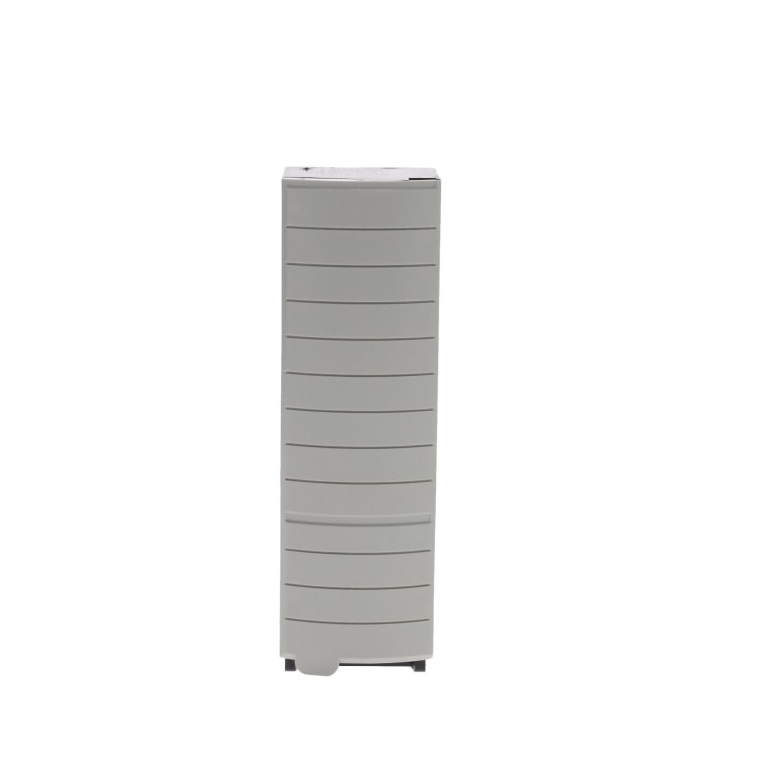

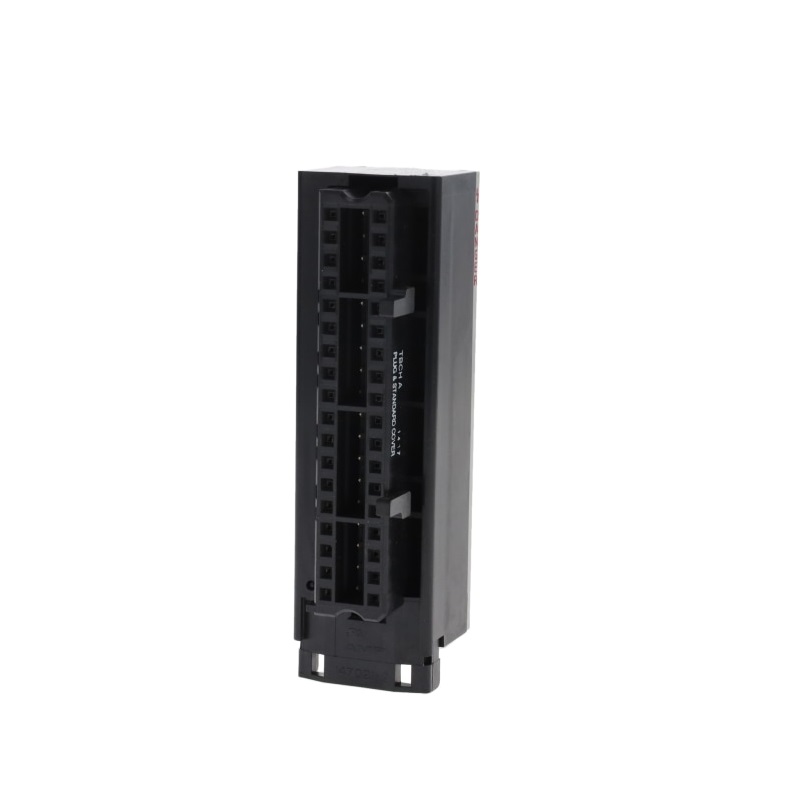

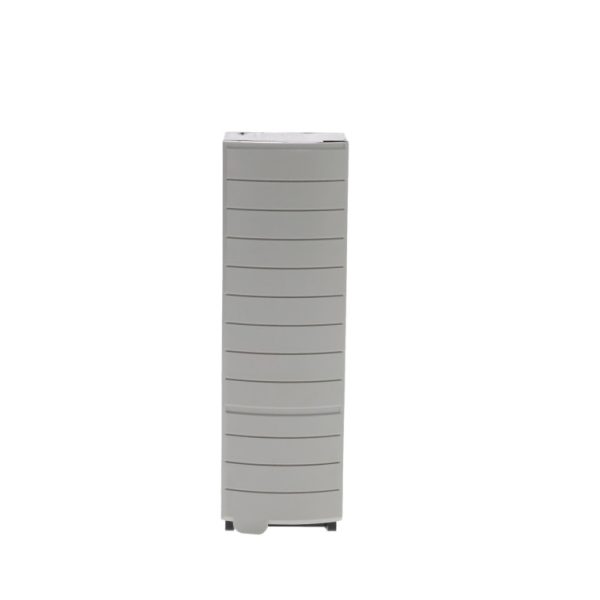

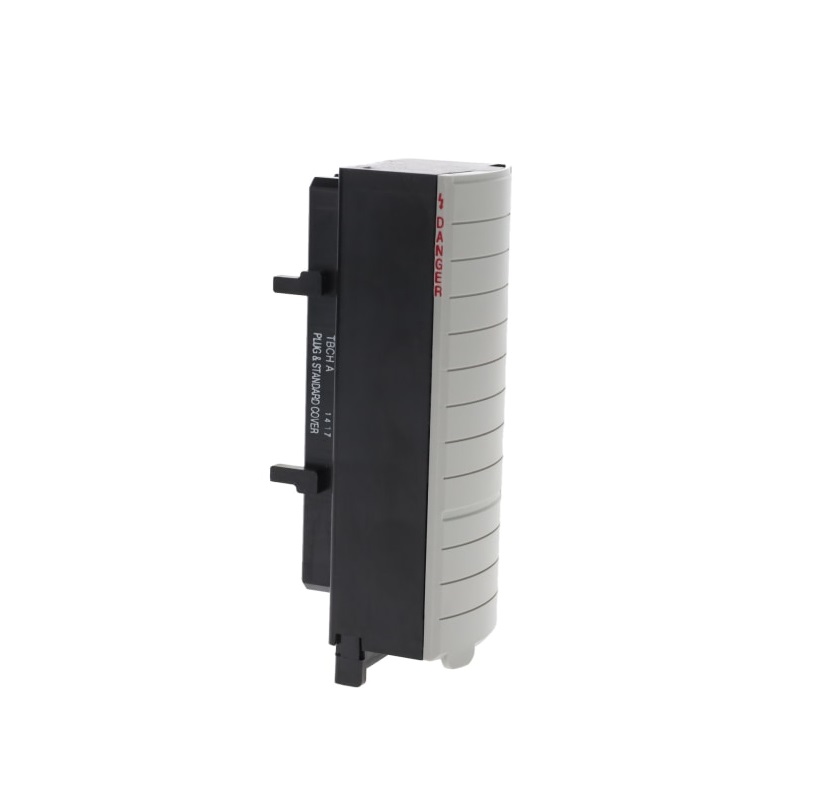

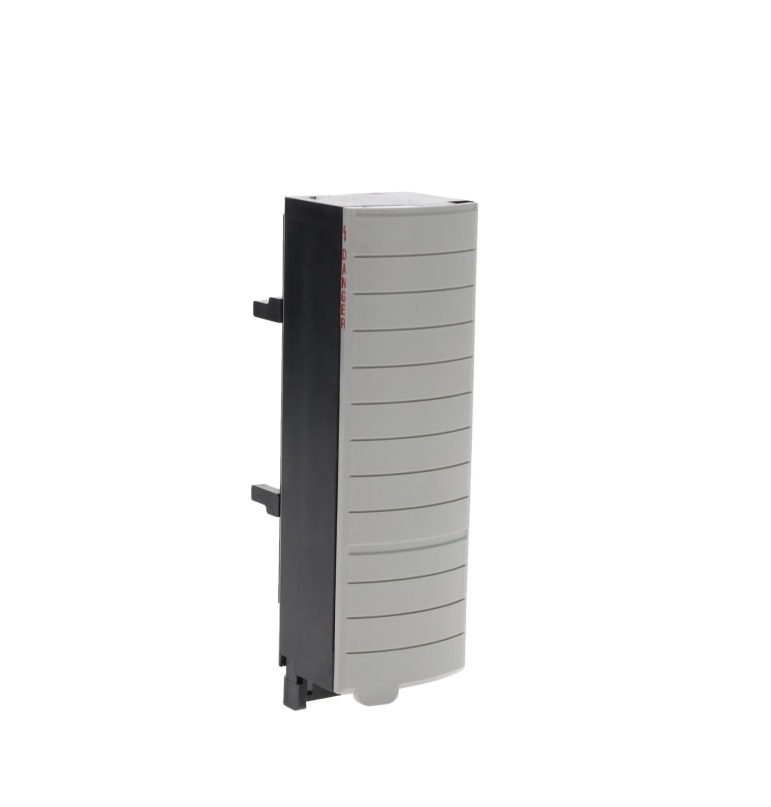

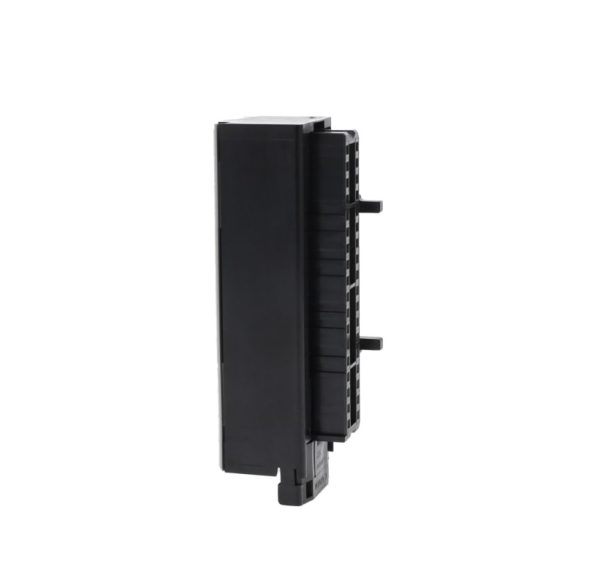

Allen Bradley 1756-TBCH: Flexible and Reliable Terminal Block
Optimize your industrial wiring with the Allen Bradley 1756-TBCH, a ControlLogix Removable Terminal Block (RTB) designed for seamless integration with 1756 I/O modules. This 36-pin cage-clamp terminal block offers a standard housing and is the ideal accessory for modular wiring terminals.
Key Features:
- Modular Wiring: Provides a flexible and efficient way to connect 1756 I/O modules to your industrial plant wiring.
- Cage-Clamp Design: Ensures secure connections with a 36-pin screw-clamp mechanism.
- Compatibility: Works with a wide range of ControlLogix modules, providing versatility in your automation setup.
- Easy Maintenance: Facilitates quick and easy troubleshooting and maintenance with its removable design.
Technical Specifications:
- Module Type: Terminal Block
- Series: ControlLogix
- Part Number: 1756-TBCH
- Brand: Allen-Bradley
- Clamp Type: Screw-Clamp
- Pins: 36-Pin Connection
- Wire Type: Solid or Stranded Wire
- Max. Wire Insulation: 90°C (194°F) or greater, 1.2 mm (3/64 in.)
- Operating Temperature: 32-140 Fahrenheit (0-60 Celsius)
| Type | Resource | Publication |
|---|---|---|
| General | Selection Guide | 1756-SG001 |
| Product Profile | — | |
| Product Cutsheet | — | |
| Technical Data | 1756-td002_-en-e | 1756-TD002 |
