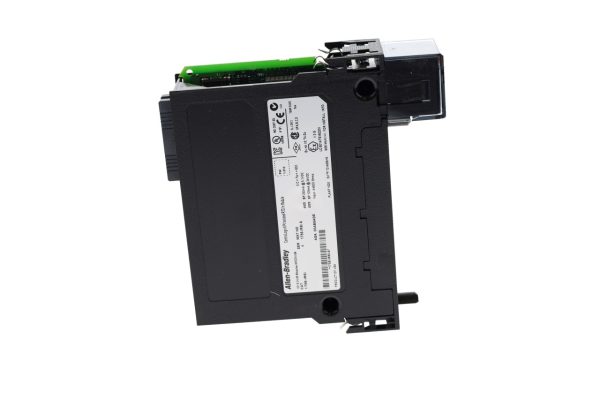

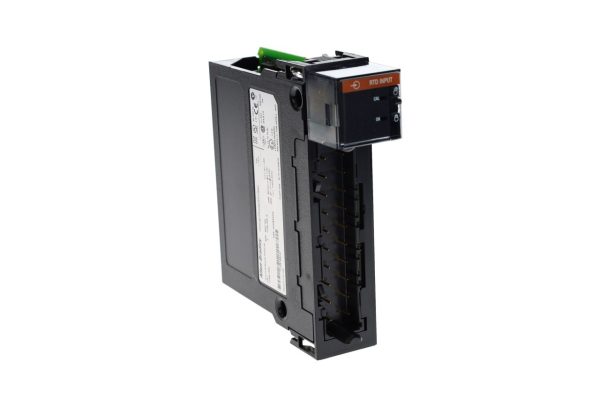

Allen Bradley 1756-IR6I

1756-IR6I Allen Bradley (Rockwell Automation)

Key Features:

Isolated RTD Compatibility: Supports multiple RTD types, including Platinum with alpha=385 and alpha=3916, and Nickel with alpha=672 and alpha=618.
High-Resolution Measurement: Offers 16-bit resolution for precise temperature readings across different input ranges.
Fast Scan Times: Ensures quick response with a module scan time as low as 10 ms in integer mode.
Data Format Flexibility: Provides data in both integer mode and IEEE 32-bit floating point format.

Technical Specifications:

Series: ControlLogix
Inputs: 6-Point Isolated RTD
Module Type: Analog RTD Module
Resolution: 16 bits, varying by range
Input Range: 1–487, 2–1000, 4–2000, 8–4000 ohms
Module Scan Time: As fast as 10 ms in integer mode
Maximum Input Current (Off-State): 2.75 milliamperes
Backplane Current: 250 milliamps at 5 Volts, 2 milliamperes at 24 Volts
Power Dissipation (Max): 4.3 Watts
Removable Terminal Blocks: 1756-TBNH, 1756-TBSH
UPC: 10612598172303
Applications:
Perfect for applications requiring high-precision temperature monitoring, the 1756-IR6I is ideal for use in process control, quality assurance in manufacturing, and environmental monitoring systems.

Why Choose the 1756-IR6I?

Select the Allen-Bradley 1756-IR6I for its exceptional versatility in RTD compatibility, high-resolution measurements, and rapid module scan times. This module is designed to enhance the accuracy and reliability of your industrial temperature sensing applications.

Additional Information:

This module operates within a maximum current of 1.2 milliamperes at 30 Volts AC, 60 Hertz, ensuring energy-efficient performance. With its robust design and compatibility with various RTD types, the 1756-IR6I is a valuable addition to your ControlLogix system.

Documentation

RESOURCE PUBLICATION NUMBER
Technical Data 1756-TD002
