Name: Allen Bradley 1756-IF6I
SKU: 1756-IF6I
Price: 198.00 USD
Availability: InStock

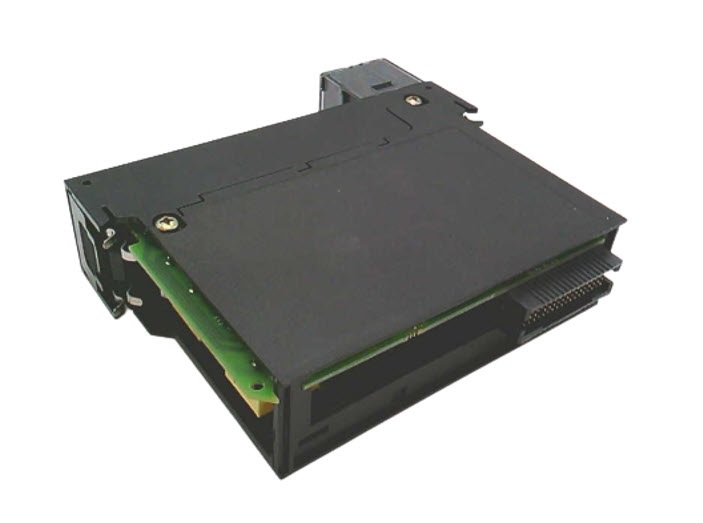

Allen Bradley 1756-IF6I

Allen Bradley 1756-IF6I, a ControlLogix analog input module that delivers exceptional performance and reliability. This module features 6 isolated input channels, compatible with a range of input signal ranges including ±10.5V, 0 -10.5V, 0-5.25V, and 0-21 mA. Boasting a 16-bit resolution, it ensures high-precision signal conversion for accurate process control.

1756-IF6I Allen Bradley (Rockwell Automation)

Technical Specifications:

Module Type: Analog Input
Inputs: 6-Points, Isolated
Conversion Method: Sigma-Delta
Input Signal Range: ±10.5V, 0 -10.5V, 0-5.25V, and 0-21 mA
Input Resolution: 16 bits with varying resolutions for different input ranges
Backplane Current: 250 mA at 5Volts, 100 milliamps at 24Volts
Power Dissipation (Max): Voltage: 3.7 W, Current: 4.3 W
Product Lifecycle Status: Discontinued/Obsolete

Key Features:

Isolated Channels: Each of the 6 channels is individually isolated for reliable signal transmission.
Versatile Input Ranges: Compatible with a variety of input ranges, making it suitable for diverse applications.
High Resolution: 16-bit resolution for precise signal conversion.
Data Formats: Choose between integer mode or IEEE 32-bit floating point for your data processing needs.
Backplane Current: Supports both 5Volts and 24Volts backplane current options.
Power Dissipation: Efficient power management with a maximum dissipation of 3.7W for voltage and 4.3W for current.
