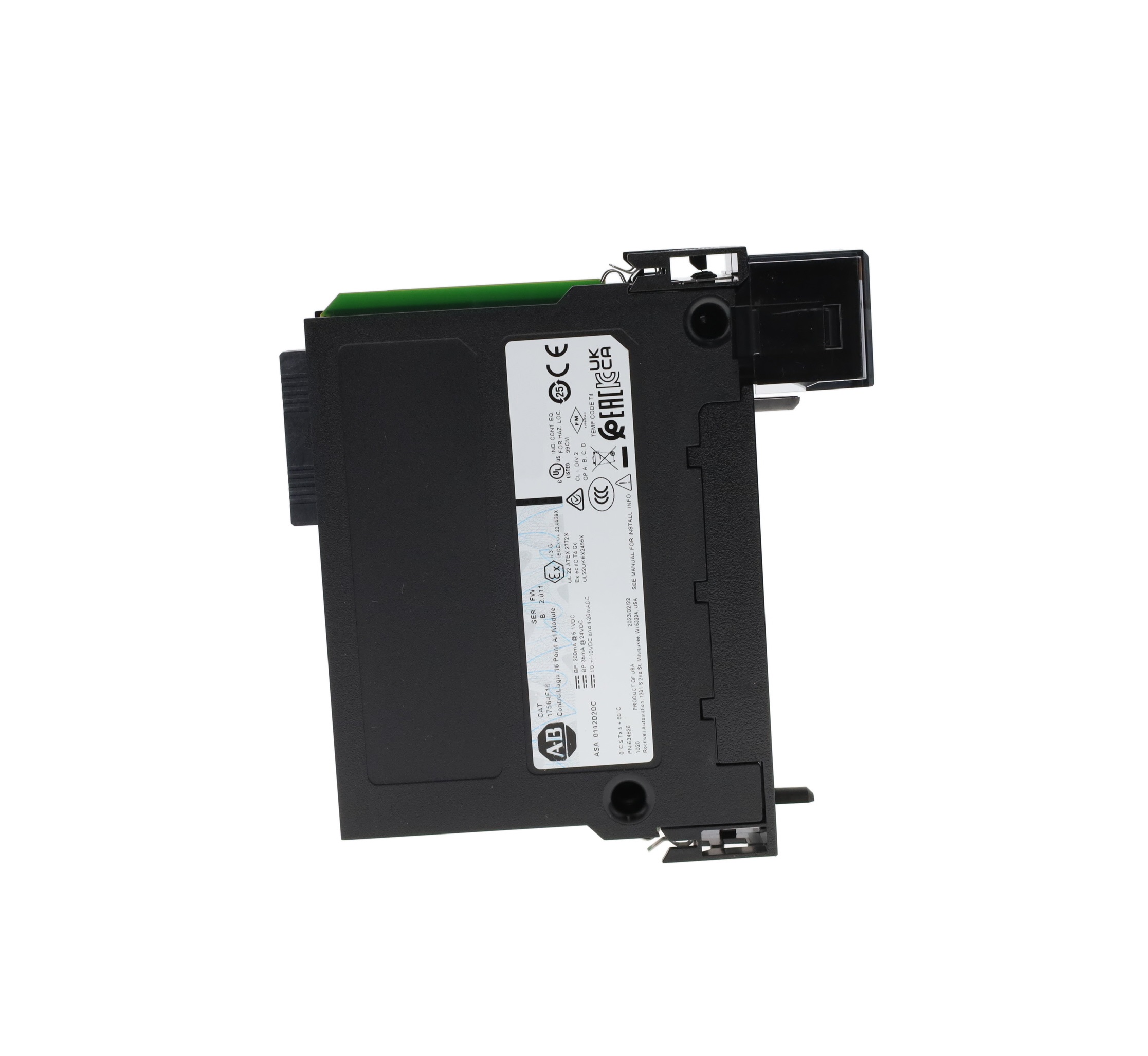

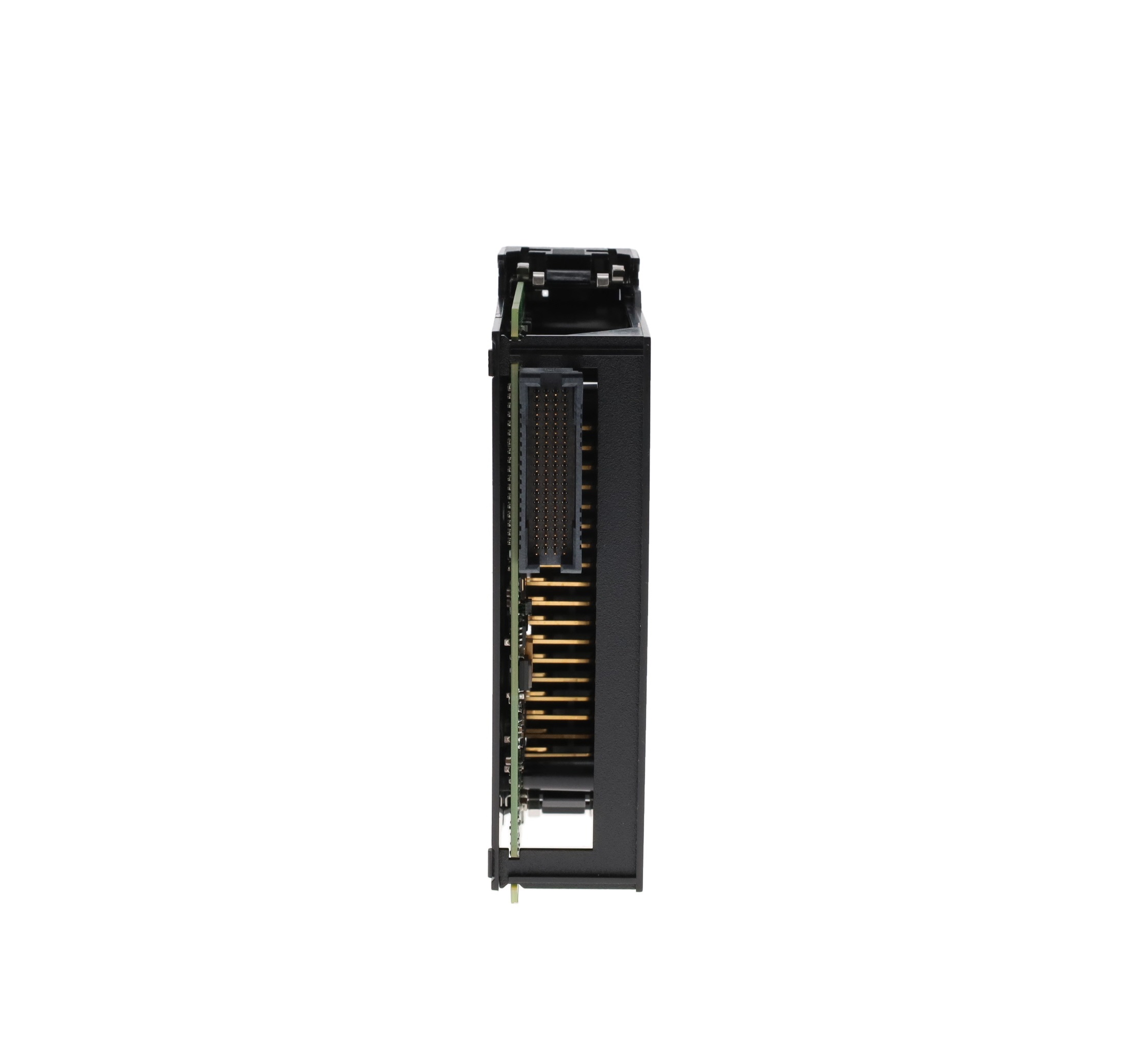

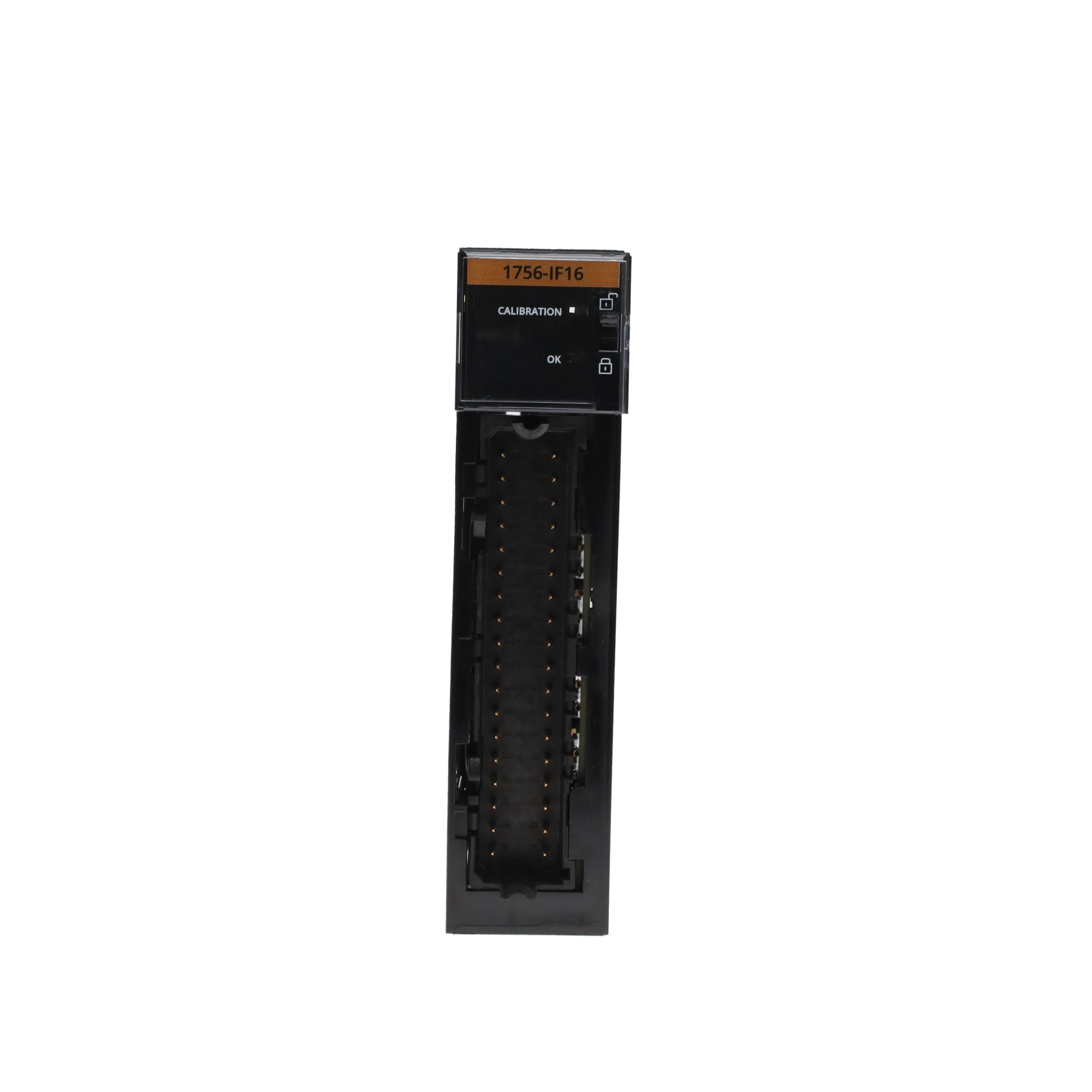

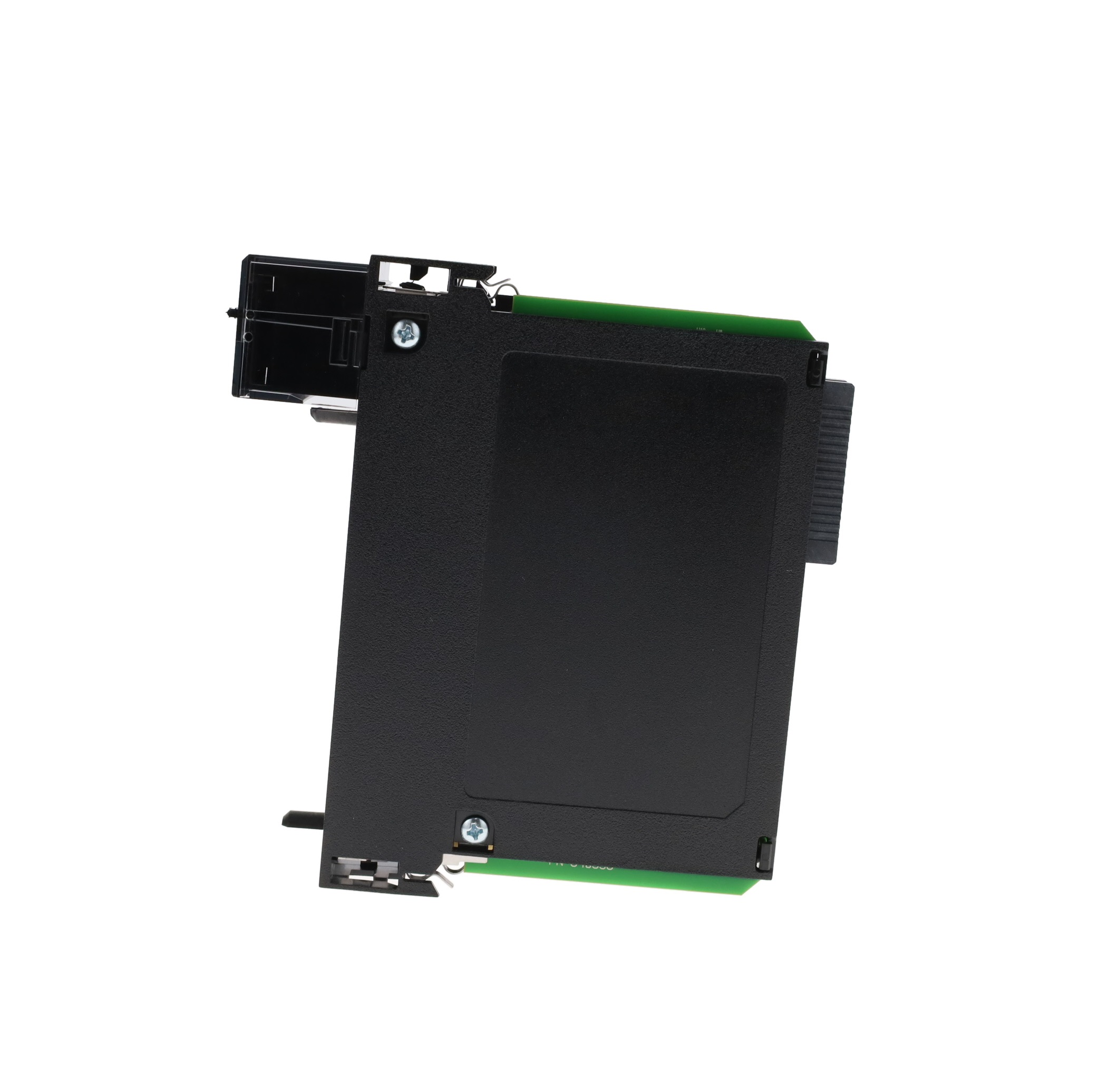

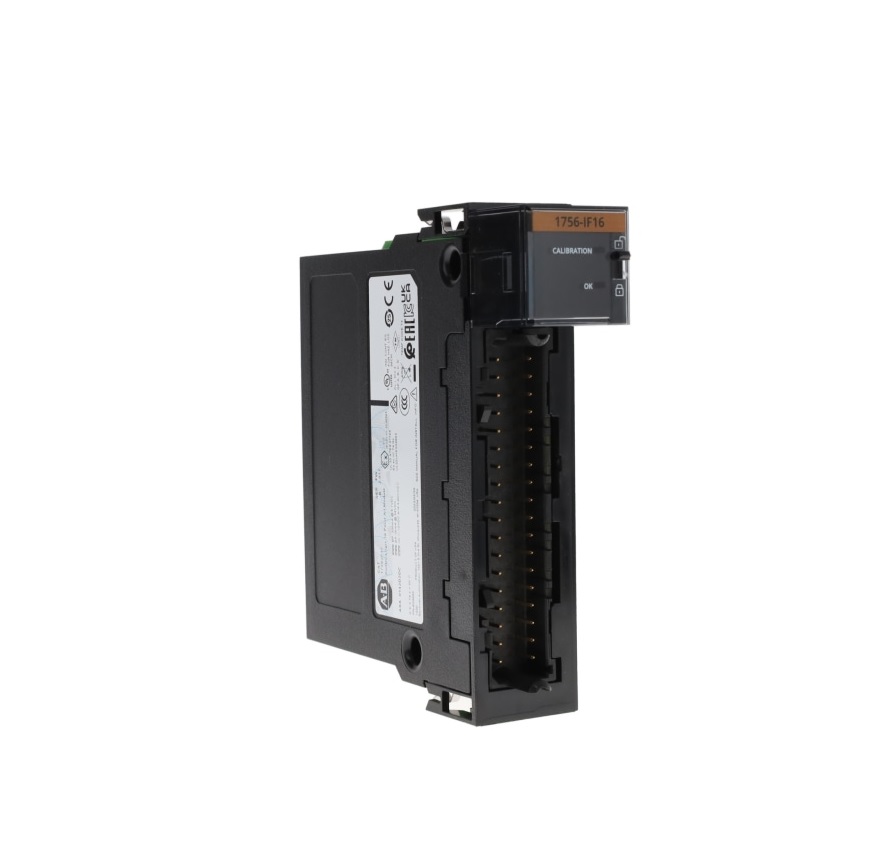

1756-IF16 Allen Bradley (Rockwell Automation)
Technical Specifications:
- Module Type: Analog Input
- Series: ControlLogix
- Part Number: 1756-IF16
- Brand: Allen-Bradley
- Resolution: 320 µV/count to 0.32 µA/count depending on input range
- Settling Time: <80 ms to 5% of full-scale
- Scan Time: Depending on wiring configuration
- Terminal Block: 1756-TBCH or 1756-TBS6H Removable Terminal Block (RTB)
- Conversion Method: Sigma-Delta
- Data Format: Integer mode or IEEE 32-bit floating point
Key Features:
- Flexible Configuration: Supports single-ended, differential, or high-speed differential wiring for various signal types.
- Wide Input Range: Compatible with ±10V, 0-10V, 0-5V, and 0-20 mA input signal ranges.
- High Resolution: Achieves 320 µV/count at ±10.25V; 160 µV/count at 0-10.25V; 80 µV/count at 0-5.125V; and 0.32 µA/count at 0-20.5 mA.
- Quick Scan Times: Varies from 16-488 ms for single-ended, 8-244 ms for differential, and 5-122 ms for high-speed differential.
- Backplane Current: 150 mA at 5.1VDC and 65 mA at 24VDC.
- Power Dissipation: 2.3 Watts (Voltage), 3.9 Watts (Current).
| Type | Resource | Publication |
|---|---|---|
| General | Technical Detail | — |
| Selection Guide | 1756-SG001 | |
| Product Profile | — | |
| Product Cutsheet | — | |
| Technical Data | 1756-td002_-en-e | 1756-TD002 |
