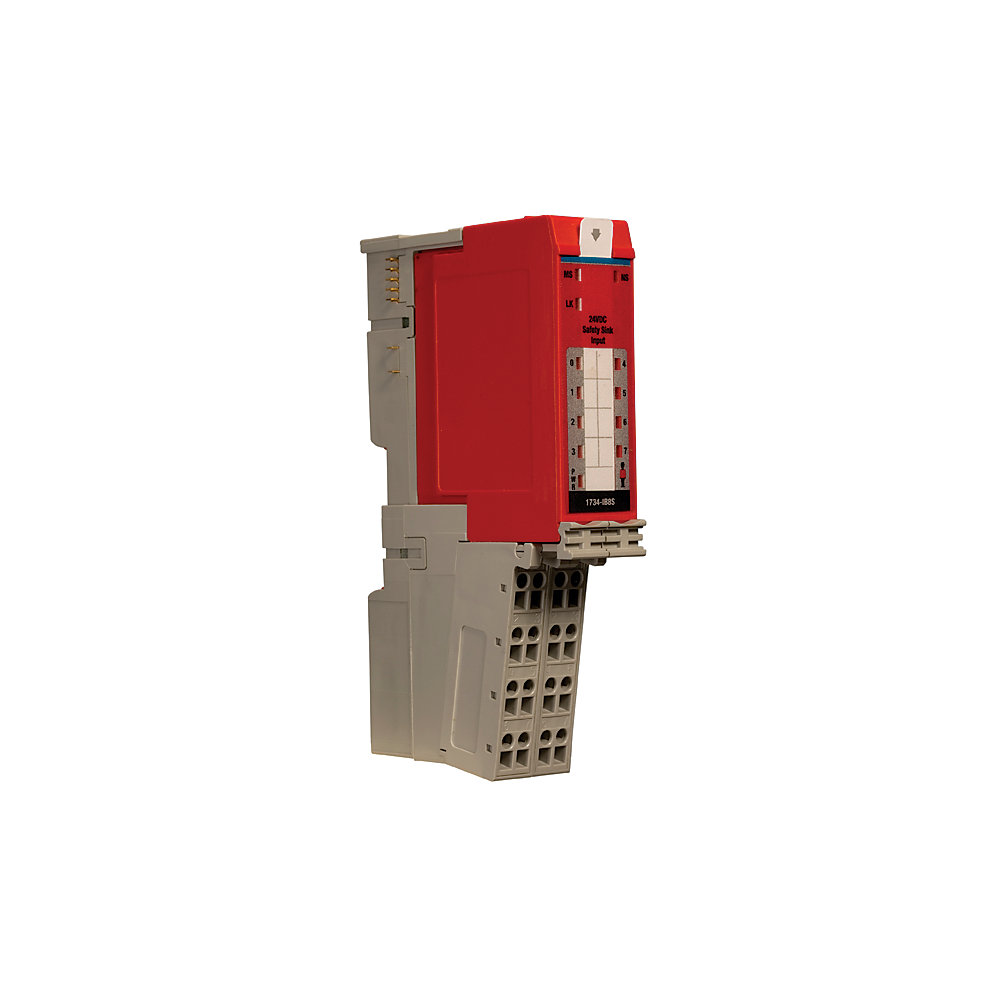

Allen Bradley 1734-IB8S: Advanced Safety Control for Industrial Applications

Key Features:

• Eight Current Sinking Inputs: Provides comprehensive safety monitoring with eight input channels for a wide range of safety devices.
• Four Pulse Test Outputs: Includes four pulse current sourcing pulse test outputs for thorough diagnostic capabilities.
• Dual-Channel Mode: Evaluates consistency across two input signals, suitable for applications with Safety Category 3 and 4.
• Single-Channel Mode: Allows for the evaluation of a single signal, making it compatible with Safety Category 2 applications.
• Configurable Discrepancy Time: Helps determine the acceptable time difference between two channels before a fault is declared.

Technical Specifications:

• Module Type: Guard IO Safety Module
• Part Number: 1734-IB8S
• Brand: Allen-Bradley
• Series: POINT I/O
• Input Type: Current Sinking
• Enclosure Type: Open
• Number of Inputs: Eight (8) Inputs
• Pulse Test Outputs: Four (4) Pulse Test Outputs
• Operating Supply Voltage: 24 Volts DC (nom)
• Available Series: A and B
• Weight: 2.2 ounces
• UPC: 10612598308573
• Dimensions: 3.03 x 0.98 x 2.17 inches
• Power Dissipation: 3.4 Watts

Description:

The Allen Bradley 1734-IB8S is a versatile safety module designed for use in applications that require SIL compliance. With eight current sinking input channels and four pulse current sourcing pulse test outputs, this module offers extensive safety monitoring capabilities.

Ideal for use in emergency stop push button, gate switches, and light curtains, the 1734-IB8S provides dual-channel mode for evaluating the consistency of two input signals, making it suitable for high-safety applications. It can also operate in single-channel mode for applications with lower safety category requirements.

Each channel features individually adjustable ON and OFF signal delay, preventing false positives and negatives caused by signal fluctuation. The module’s open-style enclosure allows for flexible mounting options, and its compatibility with SmartGuard, GuardLogix, and Compact GuardLogix controllers ensures seamless integration into your existing control systems.

Why Choose Us:

• Quality Assurance: We specialize in providing genuine Allen Bradley products with guaranteed quality.
• Comprehensive Support: Offers repair services and expert advice to ensure your satisfaction.
• Flexible Services: Provides drop shipping, blind shipping, and account shipping options.
