1794-IB16 Allen Bradley

Original price was: $265.00.Current price is: $42.00.

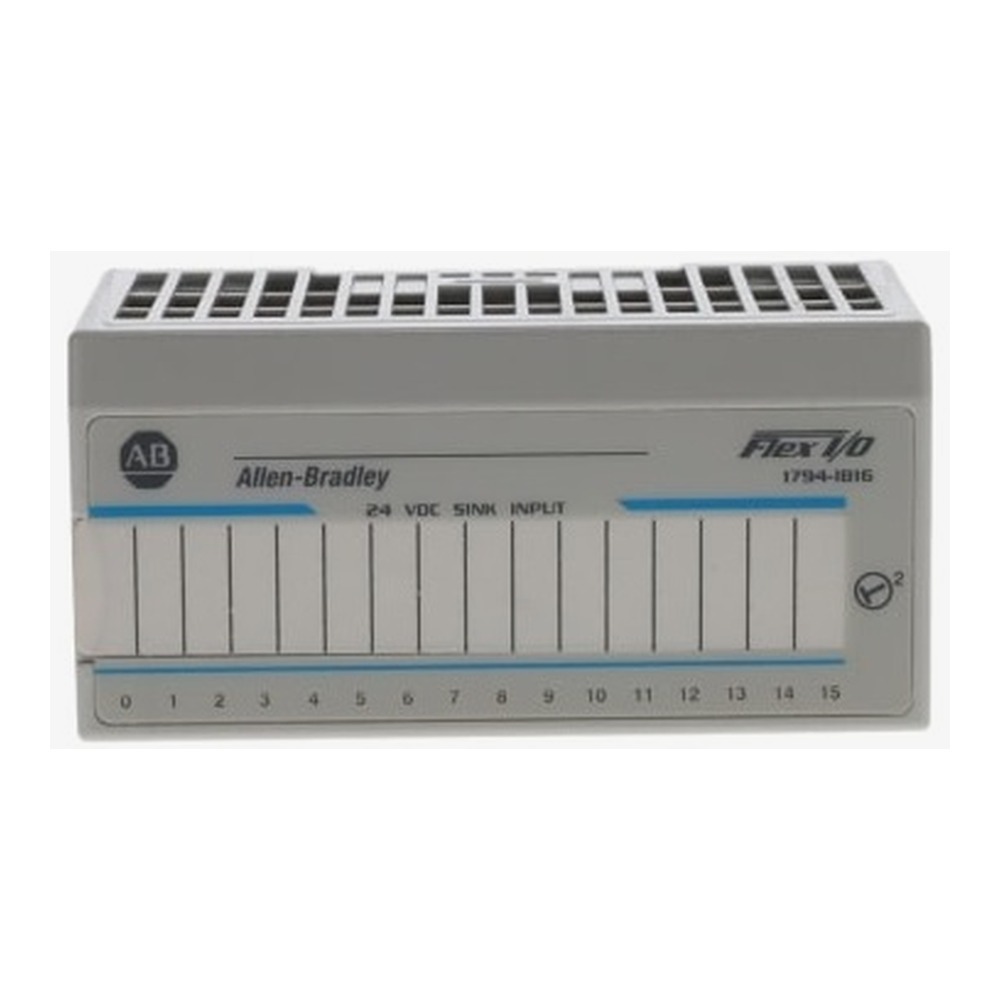

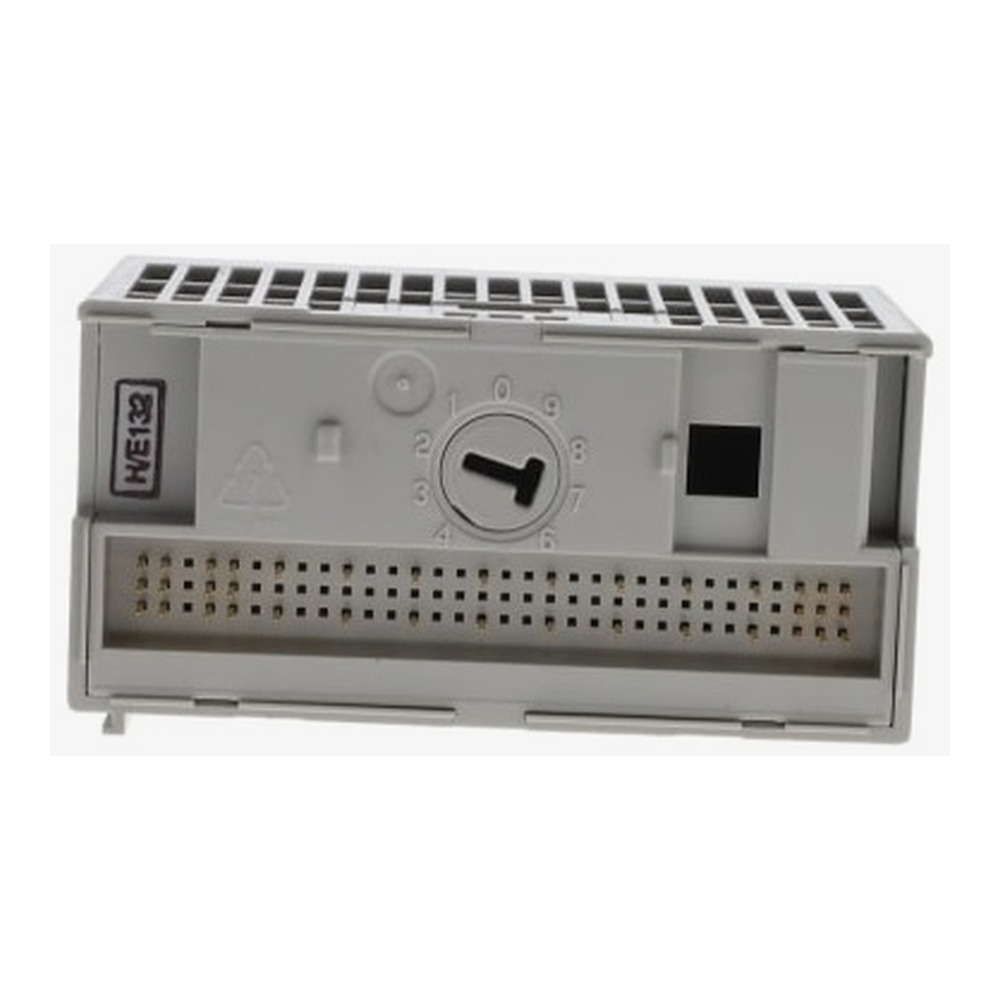

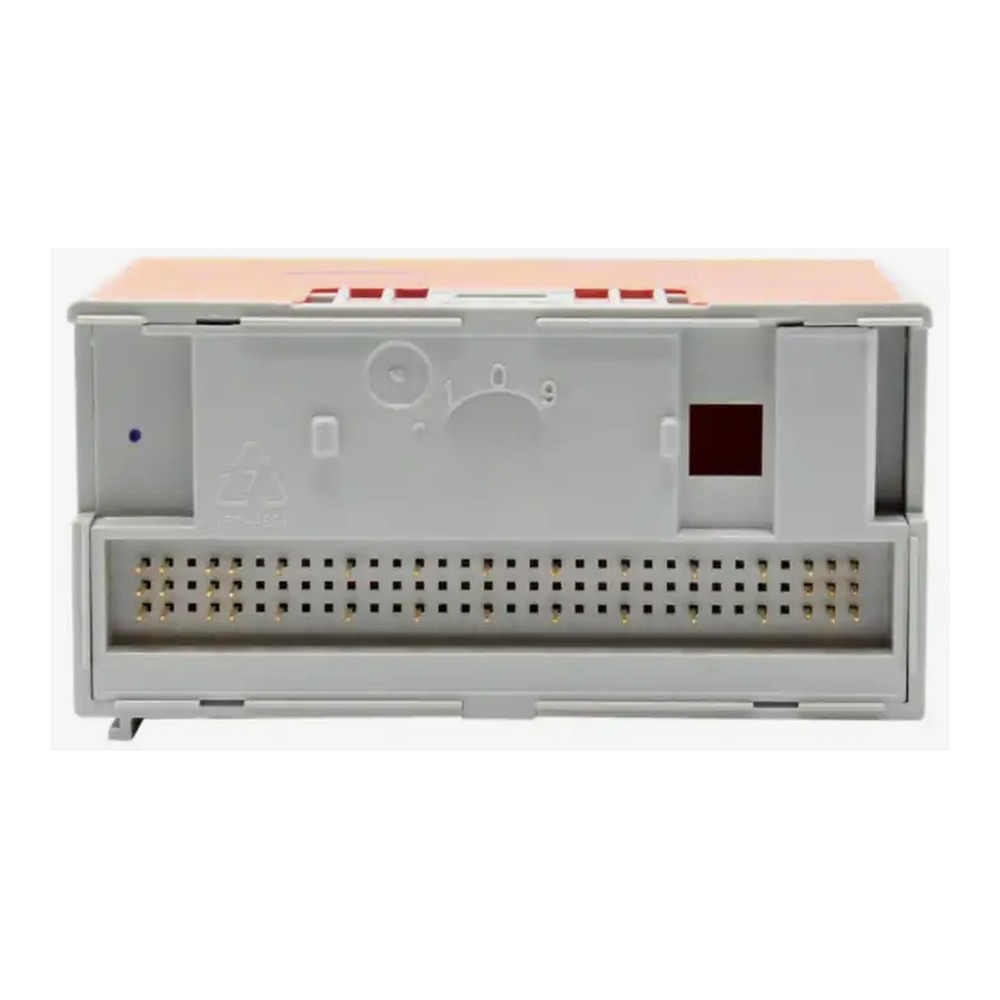

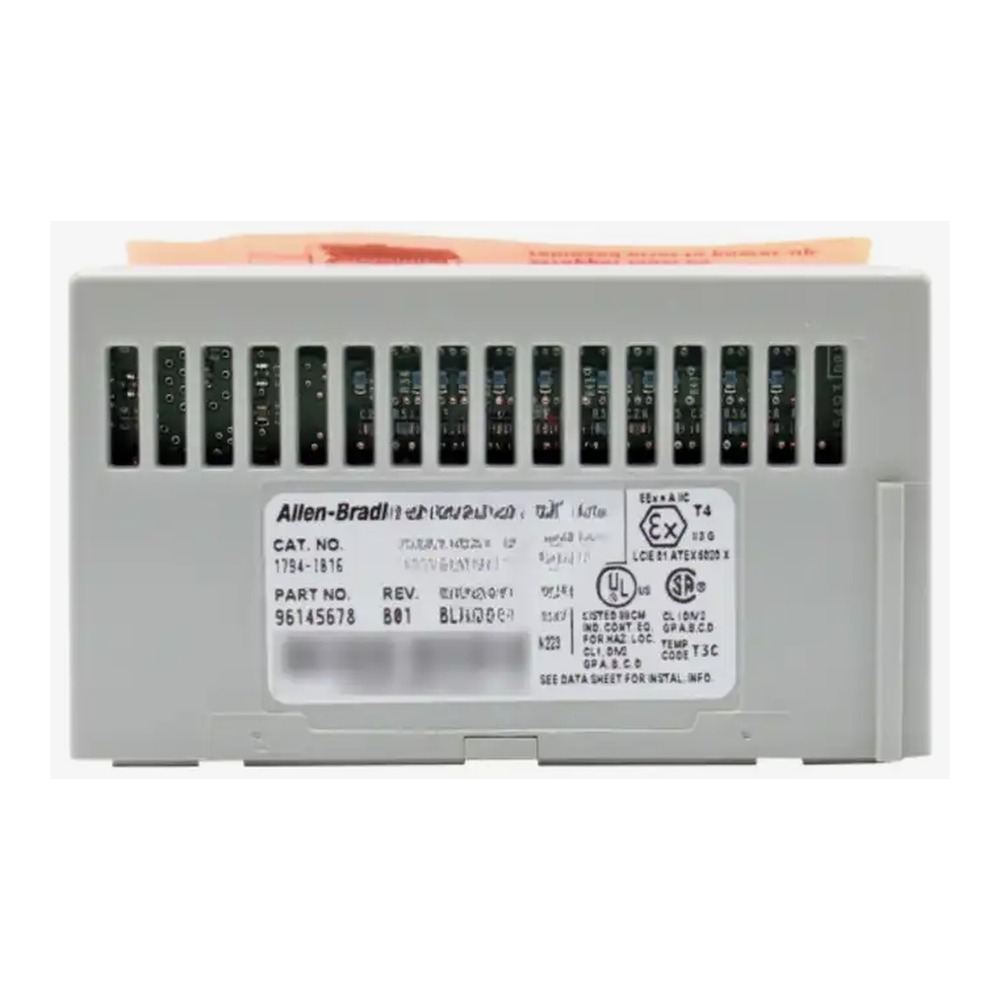

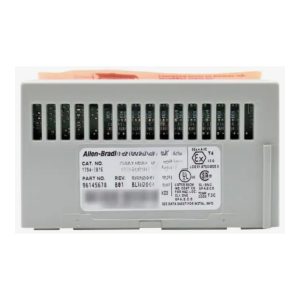

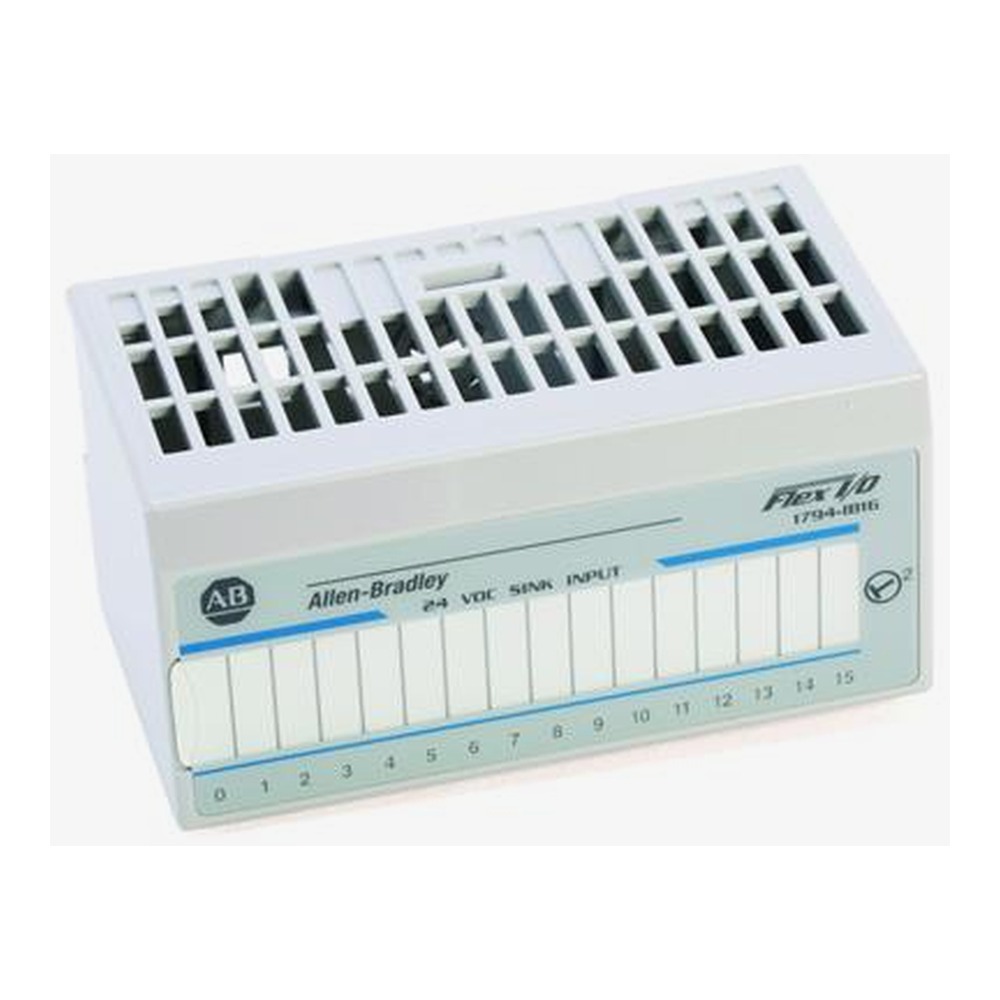

The Allen-Bradley 1794-IB16 is a Flex IO discrete input module. This module features Sixteen (16) 24VDC sinking input channels. It is compatible with a variety of terminal base units such as 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, 1794-TB37DS. It is compatible with any 1794 Flex IO adapters to implement distributed I/O application.

GTIN: 10612598137784 SKU: 1794-IB16 Categories: ,

1794-IB16 Allen Bradley Rockwell Automation

Technical Specifications for 1794-IB16

ManufacturerRockwell Automation
BrandAllen-Bradley
Operating Temperature:0 to 55 C (32 to 131 F)
Wire Size:Determined by installed terminal base
Mounting:DIN Rail
Indicators:16 Yellow status indicators
ON state Voltage, nom:24 VDC
ON state Voltage, max.31.2 VDC
ON state Voltage, min:19.2 VDC
Number of Inputs:Sixteen (16), sinking inputs
Terminal base:1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794- TBKD, 1794-TB37DS
Product Description:Flex IO DC Input Module
Storage Temperature:-40 to 85 C (-40 to 185 F)
Vibration:5g @ 10 to 500 Hz
Part Number/Catalog No.1794-IB16
Operating Shock:30 g
Product TypeFlex I/O Digital Input Modules
Inputs16 Current Sinking
On-state Voltage min.10V DC
On-state Voltage max.31.2V DC
On-state Current min.2.0mA min.
On-state Current max.12.0mA
Off-state Voltage max.5V DC
Off-state Current max.1.5mA
Nominal Input Impedance4.6 k?
Flexbus Current30mA @ 5V DC
Power Dissipation6.1W @ 31.2V DC max.
UPC10612598137784



About 1794-IB16

The Allen-Bradley 1794-IB16 is a Sixteen (16) channel 24VDC Discrete input module. This module is part of the 1794 Flex IO product family which is primarily used to implement distributed IO solution. With distributed I/O architecture, I/O modules may be installed near the source of the signal or the driven load. This significantly reduces cable runs thus, reduces overall installation costs. It also simplifies maintenance and contributes to overall increase in the control system uptime.

The 1794-IB16 support standard DIN rail mounting or direct panel mounting. This module is used with terminal base where signal wirings are terminated. Compatible terminal bases are 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, 1794-TB37DS. Additionally, the1794-IB16 require use of a communication adapter for transferring I/O data to the partner scanner module or controller. Compatible communication adapters are DeviceNet communication adapter with catalog number 1794-ADN, Remote I/O communication adapter with catalog number 1794-ASB, Ethernet communication adapter with catalog number 1794-AENT, Profibus communication adapter with catalog number 1794-APB and ControlNet communication adapter with catalog number 1794-ACN.

The 1794-IB16 has a current draw of 30 mA @ 5V DC. The individual input channels are rated10 to 31.2 VDC with nominal input voltage of 24VDC and supports sink wiring configuration. Each channel has a minimum On-state voltage of 10VDC and maximum of 31.2VDC while the maximum OFF-state voltage is 20VDAC. It has a power dissipation of 3.5 W @ 31.2V DC and Thermal dissipation of 11.9 BTU/hr @ 31.2V DC.

The 1794-IB16 module has 16 current sinking inputs with 24V DC nominal On-State voltage, 10-31.2V DC On-State voltage range, and 1.5mA minimum Off-State current. It has a maximum power dissipation of 6.1W at 31.2V DC. Terminal base units compatible with this module are the 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, 1794-TB37DS.

This module supports DIN rail or panel mounting and supports various communication adapters such as ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O. The 1794-IB16 module has 16 yellow LEDs as status indicators for each channel. LEDs indicate corresponding input device and output signal. It also has D and XT versions of standard modules for diagnostics and extreme environments which reduces panel and maintenance costs. It has a 0 – 55 °C (32 – 131 °F) operating temperature and a 5 – 95% noncondensing relative humidity.

FAQ for 1794-IB16



What is the maximum number of 1794-IB16 can I install with One (1) Flex I/O rack?

Up to Eight (8) 1794-IB16 may be installed in a single Flex I/O rack.

Does the 1794-IB16 support sourcing wiring configuration?

No. The 1794-IB16 only supports sink wiring configuration.

Does the 1794-IB16 support Flex I/O communication adapters?

Yes. It supports all of the available Flex I/O communication adapters.

Technical Description of 1794-IB16

The Allen-Bradley 1794-IB16 Flex I/O Digital Input Modules has 16 Current Sinking Inputs, a 10V DC On-state Voltage min., and a 31.2V DC On-state Voltage max.. It also operates with a 12.0mA On-state Current max. and a 5V DC Off-state Voltage max..
