Key Features:

• 8-Point Output Capability: The 1756-ON8 offers eight robust output points, making it ideal for a variety of control applications.
• Wide Voltage Range: Operates on a voltage range of 10-30 Volts AC, making it compatible with different power sources and ensuring flexibility in various industrial settings.
• High Output Current Rating: Each point can handle up to 2 Amps at 60 degrees Celsius, while the module can manage a maximum of 5 Amps at 30 degrees Celsius and 4 Amps at 60 degrees Celsius.

Technical Highlights:

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley

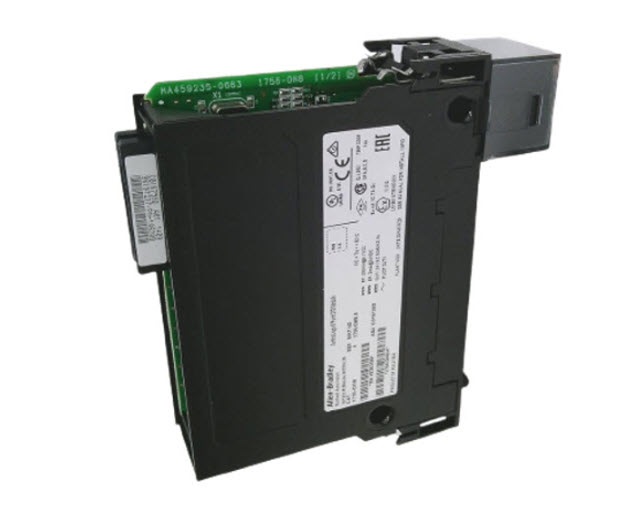

• Part Number: 1756-ON8
• Series: ControlLogix
• Module Type: Output Module
• Outputs: 8-Point
• Voltage: 240 Volts AC
• Operating Voltage Range: 10-30 Volts AC
• Maximum Output Current Rating-Point: 2 Amps at 60 degrees Celsius
• Maximum Output Current Rating-Module: 5 Amps at 30 degrees Celsius, 4 Amps at 60 degrees Celsius
• Power Dissipation (Max): 5.1 Watts at 60 degrees Celsius
• Backplane Current at 5 Volts: 200 milliamps
• Removeable Terminal Block(s): 1756-TBNH, 1756-TBSH
• Isolation Voltage: 50 Volts Continuous
• UPC: 10612598171450

Why Choose the 1756-ON8?

• Versatile Functionality: Utilize the 1756-ON8 in a network of producer and consumer models to generate information on demand and enhance system functionality.
• Efficient Power Management: With a total backplane power of 1.07 W and maximum power dissipation of 5.1 W at 60 °C, this module is designed for energy efficiency.
• Durable Construction: Built to withstand the demands of industrial environments, the 1756-ON8 operates within a temperature range of 0-60 °C and is resistant to shocks and vibrations.
