1756-OG16 Allen Bradley

Original price was: $678.00.Current price is: $490.00.

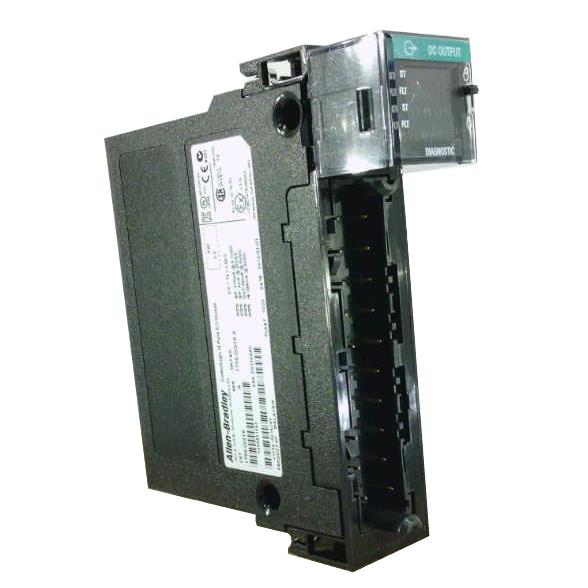

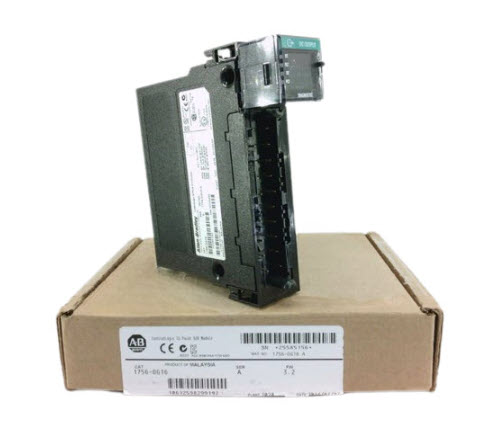

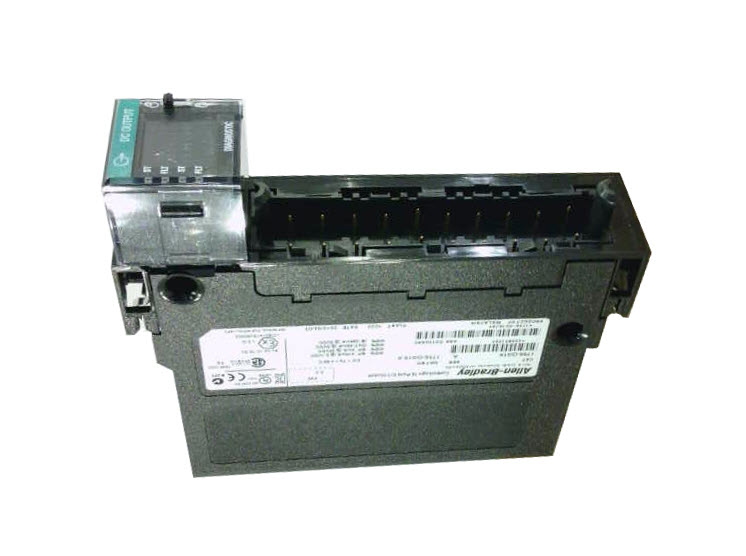

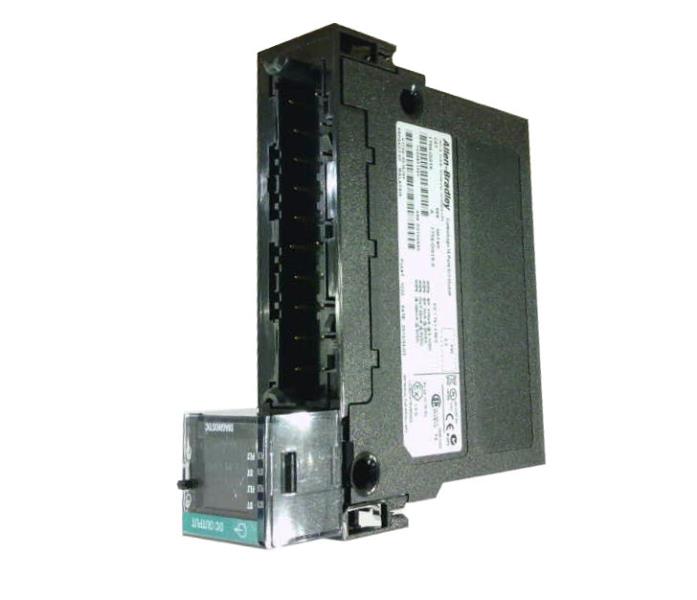

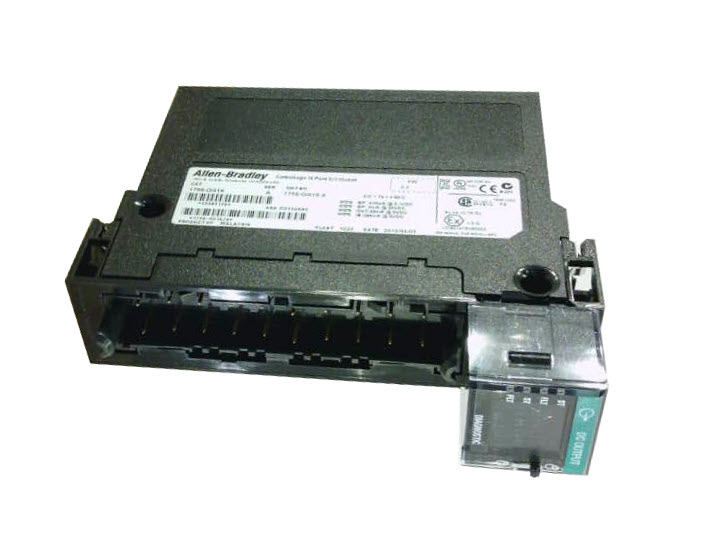

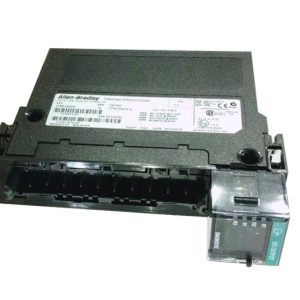

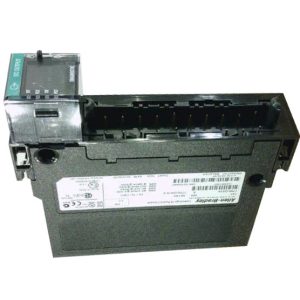

ControlLogix 16 Point D/O Module

Allen Bradley ControlLogix Digital DC Ouptut Module with 16-Point Outputs

Documentation

RESOURCEPUBLICATION NUMBER
Technical Data1756-TD002
GTIN: 612598299195 SKU: 1756-OG16 Categories: ,

1756-OG16 Allen Bradley Rockwell Automation

Technical specifications

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1756-OG16
SeriesControlLogix
Module TypeDigital DC Ouptut Module
Outputs16-Point
Voltage5 Volts DC with TTL Source
Operating Voltage Range4.5-5.5 Volts DC
Maximum Output Current Rating-Point24 milliamps at 60 Celsius
Maximum Output Current Rating-Module384 milliamps at 60 Celsius
Power Dissipation (Max)1.5 Watts at 60 Celsius
Backplane Current at 5 Volts210 milliamps
Removeable Terminal Block(s)1756-TBNH, 1756-TBSH
Isolation Voltage50 Volts Continuous
EnclosureNone

Description

The 1756-OG16 ControlLogix Transistor-Transistor Logic Output Module by Allen-Bradley is a DC digital output module installed in the ControlLogix chassis with sixteen 5V DC Low/True TTL outputs. Its operational voltage range is between 4.5 and 5.5V DC and it has a load-dependent signal delay time of 450μs for OFF to ON and one of 700μs for ON to OFF. The 1756-OG16 has a backplane draw current of 210mA at 5.1V DC and of 2mA at 24V DC with a total backplane power of 1.12W. The 1756-OG16 has a maximum OFF state current leakage of 0.1mA on each output point, and its overall ON state drop voltage is 0.4V. The maximum current load on each point is 24mA and the total current load on the module is 384mA and it has a maximum output scheduled time of 16.7s. When operational, the 1756-OG16 has a thermal dissipation of 5.2 BTU/hr at 60 °C, a power dissipation of 1.5W, and it comes with a factory-designated T5 temperature code for North America and Europe. It has a functional temperature range of 0-60 °C (32-140 °F) at 5-95% humidity without condensation. The 1756-OG16 has an operational shock rating of 30G and a vibration of 2.0G at 10-500Hz. It is CE and UL certified, and has a CISPR 11, Class A Emission rating.

Revisions

Revision Part #Also known as
1756-OG16 Ser A1756-OG16/A, Series A, Rev A

Alternative names

  • 1756-0G16
  • 1756-OGL6
  • 17560G16
  • 1756OG16
  • 1756OGL6
  • L756-0GL6
  • L756-OG16
  • L756-OGL6
  • L7560GL6
  • L756OG16
  • L756OGL6
Weight0.5 kg
Dimensions10 × 10 × 5 cm
