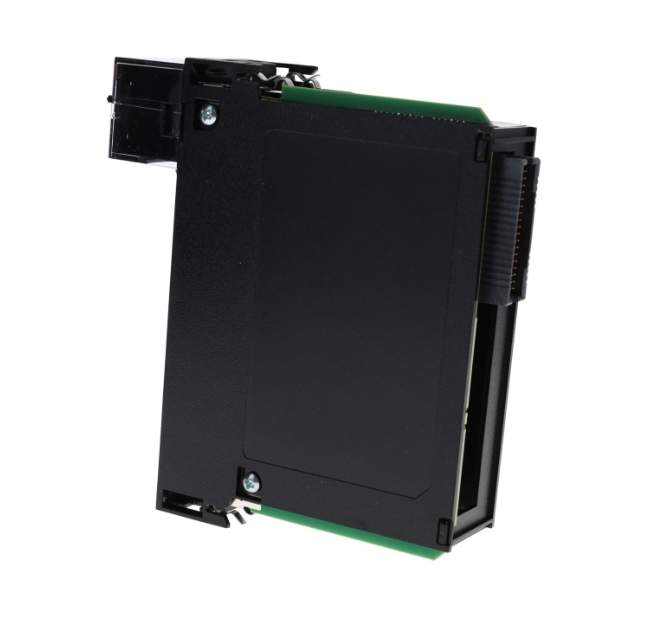

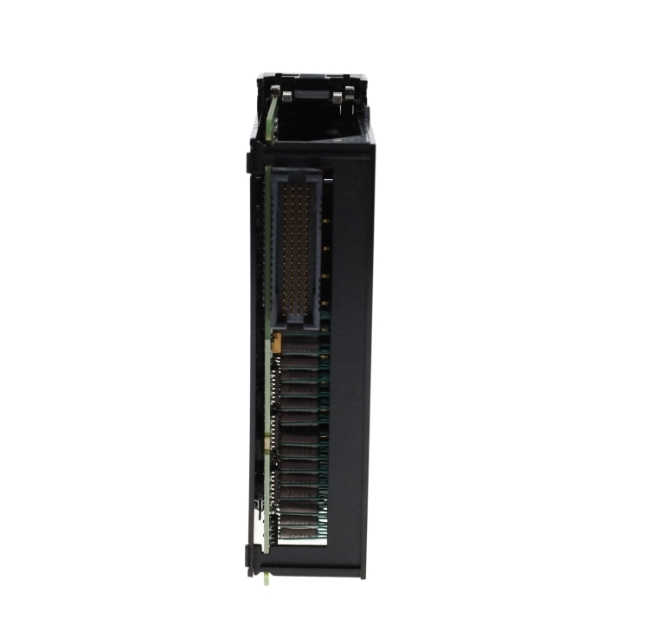

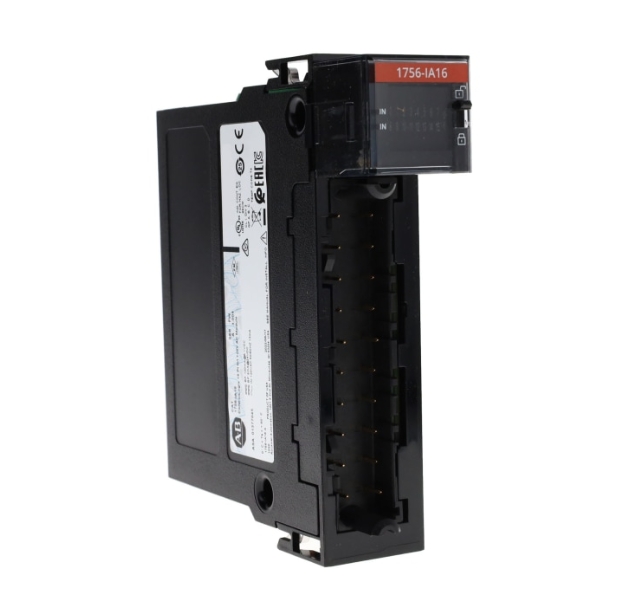

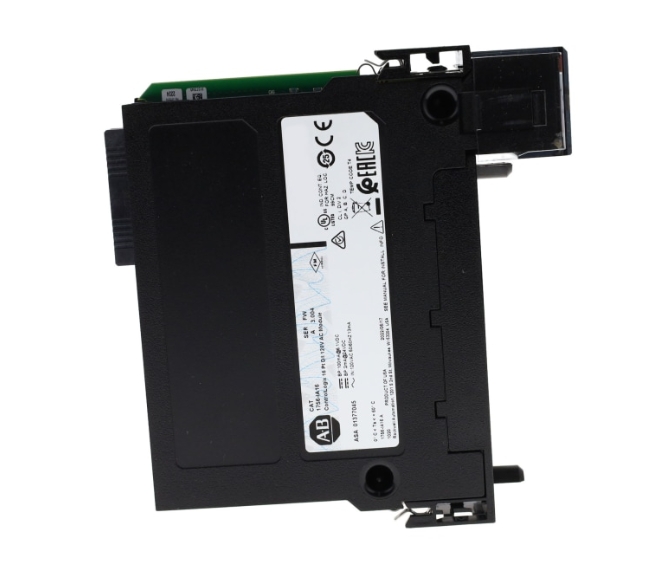

Allen Bradley 1756-IA16: Reliable 16-Channel AC Input Module for ControlLogix Systems

Enhance your industrial control capabilities with the Allen Bradley 1756-IA16, a robust 16-channel AC input module designed for seamless integration with your ControlLogix automation systems. This module is engineered to provide reliable signal acquisition for a variety of discrete devices, making it an essential component for comprehensive process monitoring and control.

Key Features:

• 16 Discrete Input Channels: Offers two groups of eight input channels each, providing extensive coverage for your monitoring needs.
• Wide Voltage Range: Operates at a nominal signal voltage of 120VAC with an operating voltage range of 74-132VAC, ensuring compatibility with various power sources.
• Programmable Signal Delay: Features user-selectable filter times for both ON and OFF transitions, allowing for precise control of signal timing.
• High-Quality Construction: Built to withstand the demands of industrial environments, with a cyclic update time ranging from 200 µs to 750 ms.
• Compatibility: Compatible with any ControlLogix chassis, ensuring easy integration into your existing control systems.

Technical Specifications:

• Module Type: Digital AC Input Module
• Part Number: 1756-IA16
• Brand: Allen-Bradley
• Series: ControlLogix
• Number of Inputs: Sixteen (16)
• Input Voltage Range: 74-132VAC
• ON-state Current: Min. 5 mA @ 79V AC, Max. 13 mA @ 132V AC
• Cyclic Update Time: 200 µs to 750 ms
• Backplane Current: 100 mA @ 5.1VDC, 2 mA @ 24VDC
• Power Dissipation: Max. 5.8 Watts at 60 degrees Celsius
• Removable Terminal Block (RTB): 1756-TBNH, 1756-TBSH

Description:

The Allen Bradley 1756-IA16 is a high-performance AC input module designed for use with the ControlLogix series of programmable automation controllers. This module is equipped with sixteen discrete input channels, divided into two groups of eight, making it suitable for a wide range of applications that require reliable signal input.

The 1756-IA16 operates at a nominal voltage of 120VAC and is designed to work with input signals ranging from 74-132VAC. Each input channel features a hardware delay time of 10 ms for OFF to ON transitions and 8 ms for ON to OFF transitions, with user-selectable filter times for precise control. The module also boasts a cyclic update time ranging from 200 µs to 750 ms, ensuring rapid and efficient signal processing.

Why Choose Us:

• Quality Assurance: We specialize in providing genuine Allen Bradley products with guaranteed quality.
• Comprehensive Support: Offers repair services and expert advice to ensure your satisfaction.
• Flexible Services: Provides drop shipping, blind shipping, and account shipping options.

The Allen Bradley 1756-IA16 is the perfect choice for enhancing the input capabilities of your ControlLogix system. Order now to experience reliable and efficient signal monitoring in your industrial control applications
