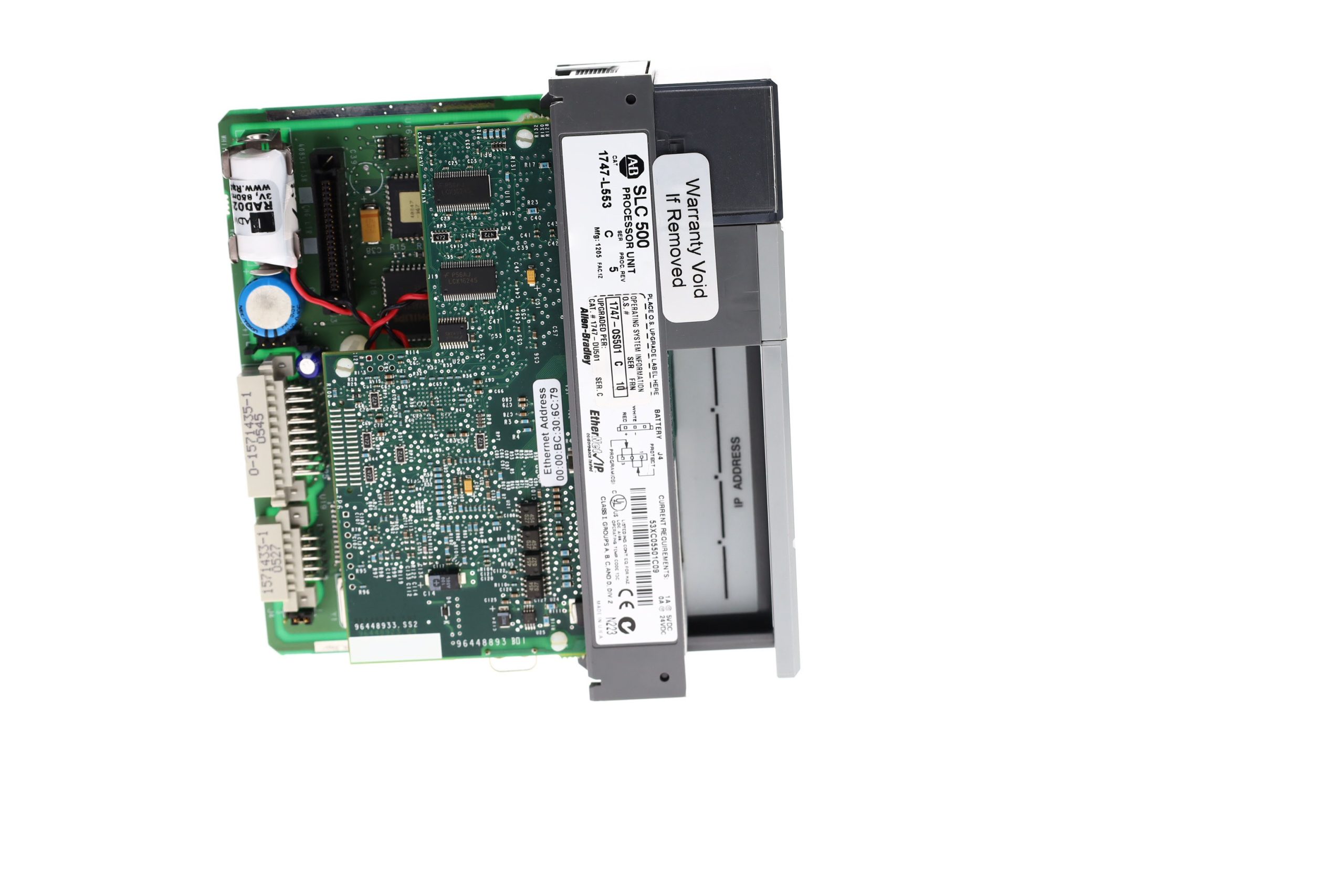

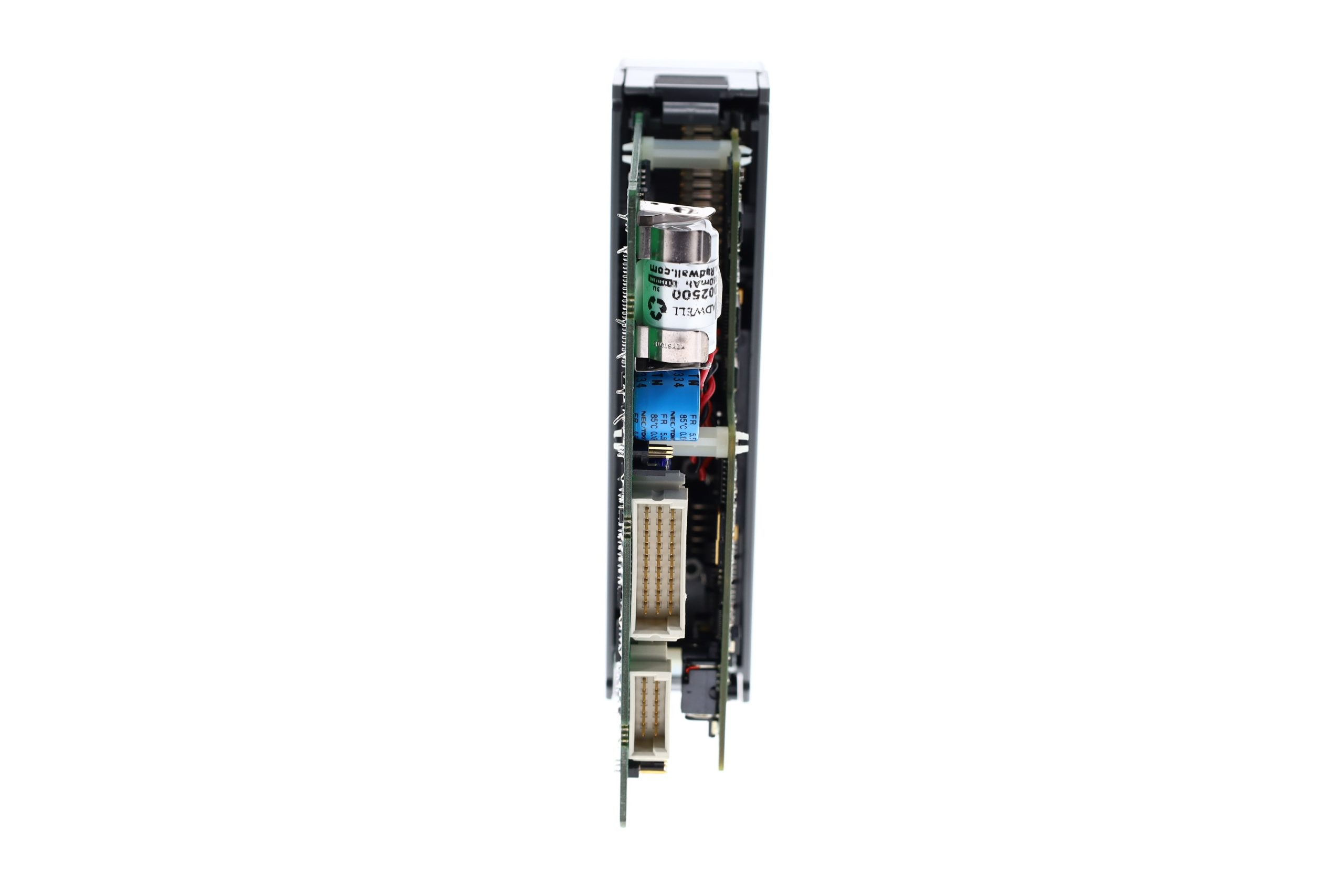

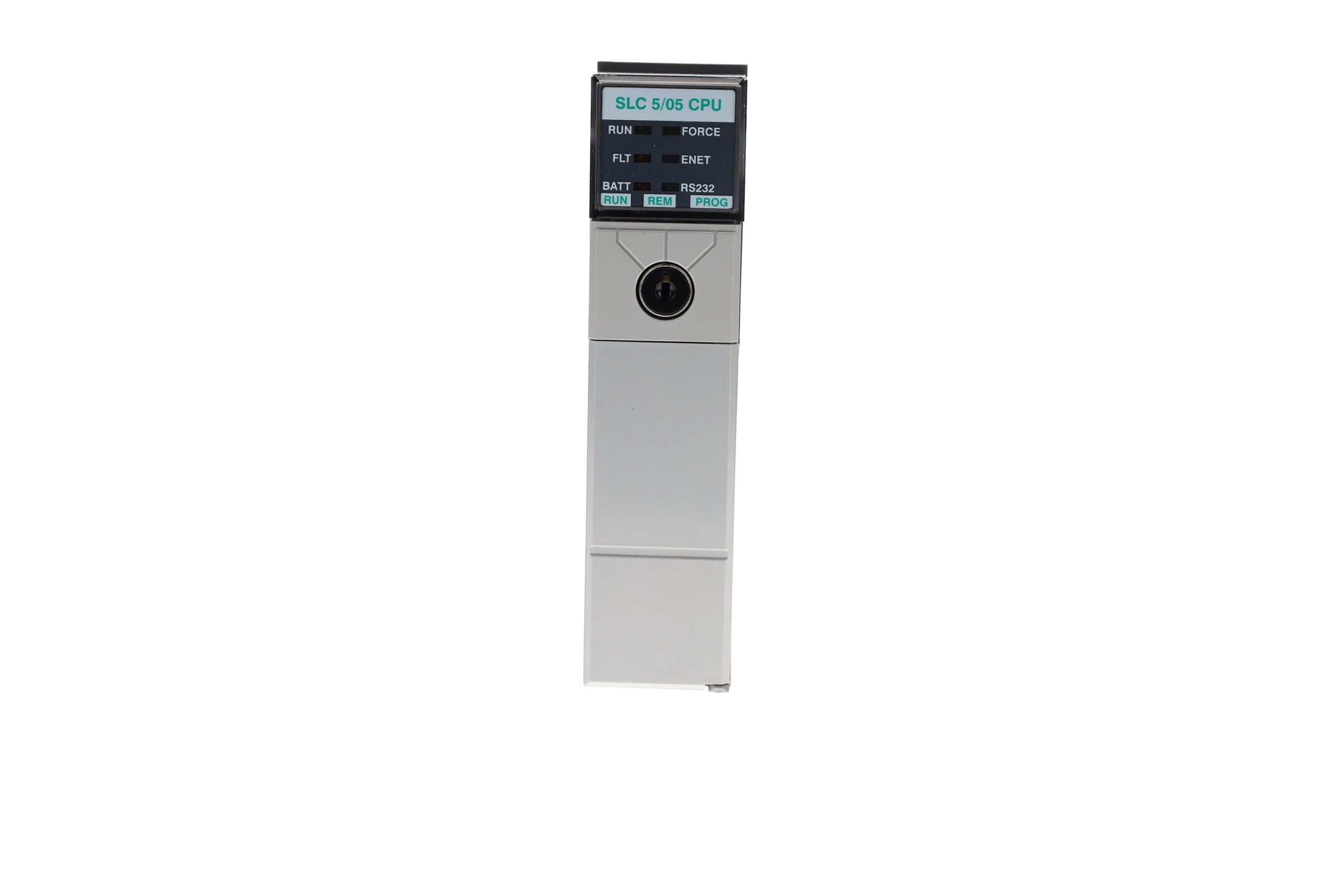

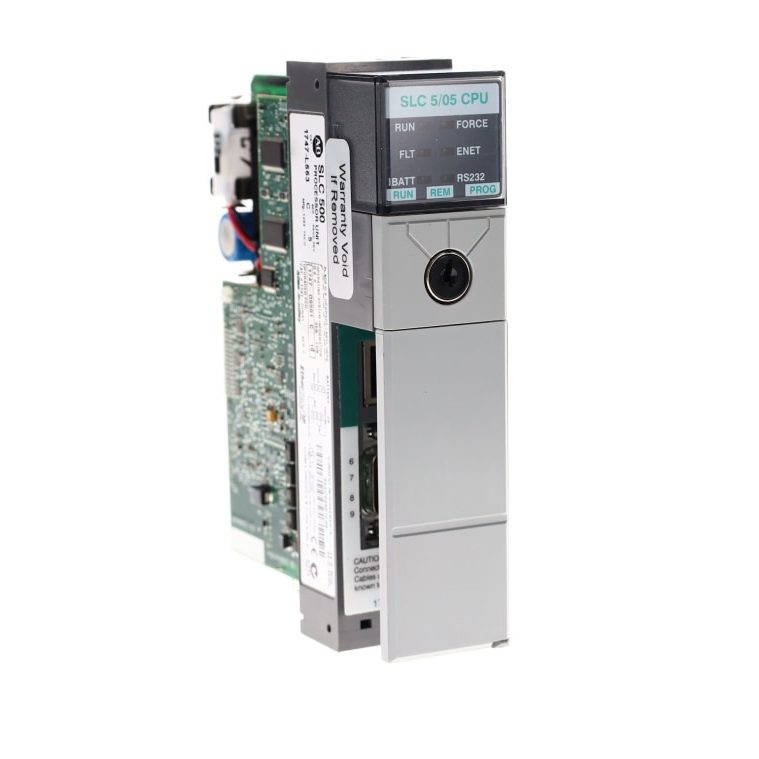

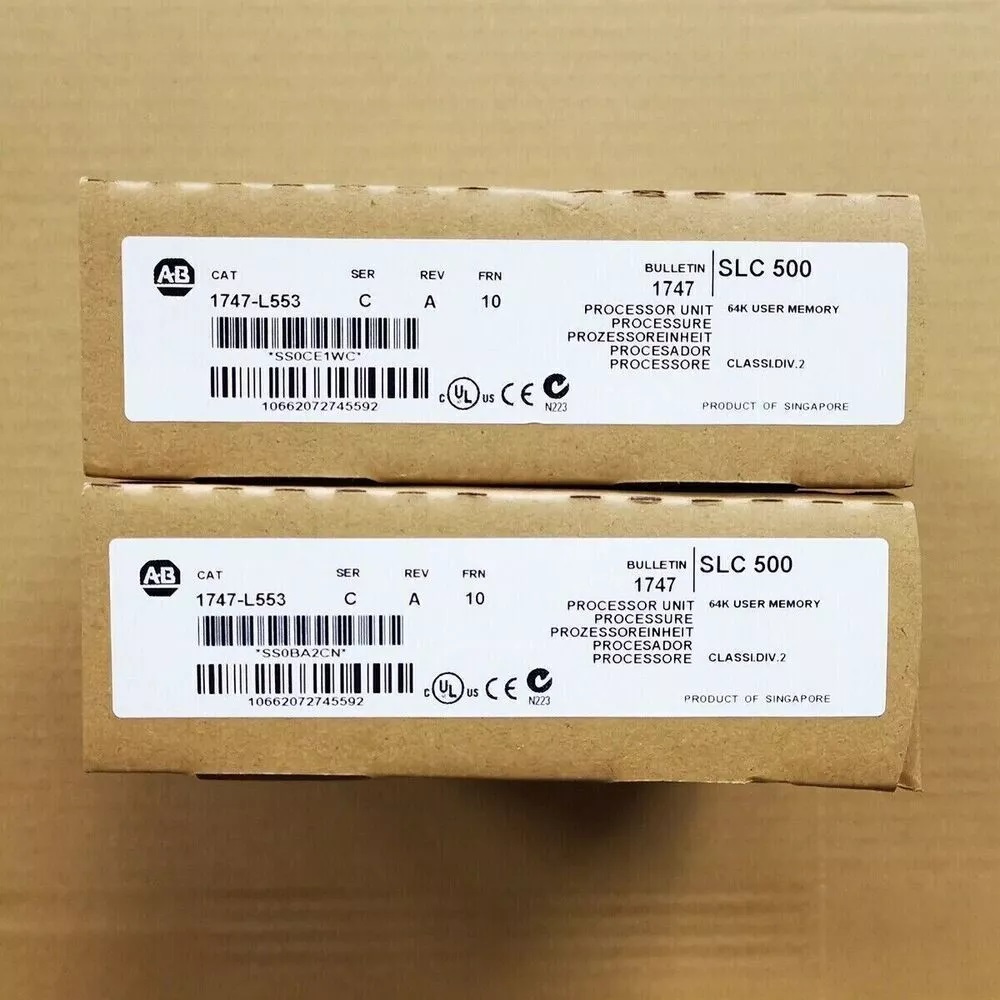

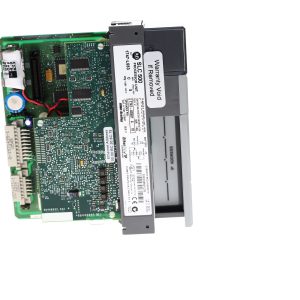

1747-L553 Allen Bradley

1747-L553 Allen Bradley Rockwell Automation

Technical Specifications:

• Series: SLC 500
• Module Type: SLC 5/05 Processor
• Memory: Up to 64 KB
• Program Scan Time: 0.9 ms/K
• User Memory: 64,000 Words
• I/O Chassis: Supports up to 3 chassis
• Chassis Module Slots: Up to 30 slots
• Communication: Ethernet, RS-232
• Backup Memory: 1747-M13
• Ambient Temperature Range: 0 to 60 degrees Celsius

Key Features:

• Massive I/O Management: With the ability to handle 4096 inputs and outputs, along with 480 analog I/Os, this module is perfect for complex automation tasks.
• Advanced Communication: Equipped with both Ethernet and RS-232 ports, the 1747-L553 offers versatile connectivity options for seamless integration with various control systems.
• High-Speed Processing: Experience rapid program execution with a scan time of 0.9 ms per keyword and an I/O scan time of 0.225 milliseconds.
• Versatile Compatibility: The module supports up to 64 simultaneous connections, making it an ideal choice for medium to large-scale applications.

Applications: Ideal for a wide range of industrial applications, the 1747-L553 is perfect for factory automation, process control, and even motion and position control requirements. Its advanced communication capabilities make it a top choice for Industrial Internet of Things (IIoT) implementations.

Why Choose the 1747-L553? Select the Allen-Bradley 1747-L553 for its expansive memory, high-speed processing, and extensive connectivity options. This processor module is designed to meet the demands of modern industrial automation, providing a reliable and powerful solution for your control needs.

Revisions:

• Revision Series A, B, C, D

Frequently Asked Questions:

• Ambient Temperature Range: 0 to 60 degrees Celsius
• Operating Shock Resistance: 30G
• I/O Capacity: 4096 inputs, 4096 outputs, and 480 local analog I/O
• Memory: 64K words of user memory
• Standalone Operation: Yes, the 1747-L553 can operate as a standalone device
• RAM: Yes, the 1747-L553 features battery-backed RAM

Technical Notes: The Allen-Bradley 1747-L553 is a controller module for the SLC 500 Modular Hardware with 64 KB of memory and built-in communication interfaces such as 9-Pin RS-232 Port and Ethernet Communication ports. It’s designed to handle a capacity of 4096 Discrete I/O and Remote I/O capacity of 4096 Inputs and 4096 Outputs points, making it a versatile choice for a wide range of industrial applications.
