Technical specifications for 1747-L541
| Manufacturer | Rockwell Automation |
|---|---|
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1747-L541 |
| Series | SLC 500 |
| Inputs | 4096 |
| Module Type | SLC 5/04 Processor |
| Outputs | 4096 |
| Analog I/O | 480 |
| Memory: | Up to 16 KB, Battery Backed-RAM |
| Program Scan Time | 0.9 ms/K |
| User Memory | 16,000 Words |
| I/O Chassis | 3 |
| Chassis Module Slots | 30 |
| I/O Scan Time | 0.225 milliseconds |
| Communication | Data Highway Plus (DH+), RS-232 |
| Backup Memory | 1747-M13 |
| Ambient Temperature | 0 to 60 degrees Celsius |
| Program Scan Time per Keyword | 0.9 milliseconds |
| Battery back-up memory: | Yes; 1747-BA |
| UPC | 10662468653029 |
| UNSPSC | 32151705 |
Key Features:
- Enhanced Communication: Equipped with a built-in Data Highway Plus (DH+) channel for high-speed messaging capabilities and an RS-232 channel that supports various communication protocols, including DF1, DH-485, ASCII, and Modbus RTU.
- Advanced Programming: Program with ease using advanced math instructions and a range of additional programming options. The 1747-L541 also supports remote I/O, DeviceNet pass-through, and indirect addressing for flexible system design.
- Rapid Processing: Experience quick program execution with a typical Program Scan Time per Keyword of 0.9 milliseconds and an I/O scan time of 0.225 milliseconds, ensuring your system responds swiftly to changes.
- Reliable Operation: The 1747-L541 is designed for continuous operation in ambient temperatures ranging from 0 to 60 degrees Celsius, making it suitable for a wide range of industrial environments.

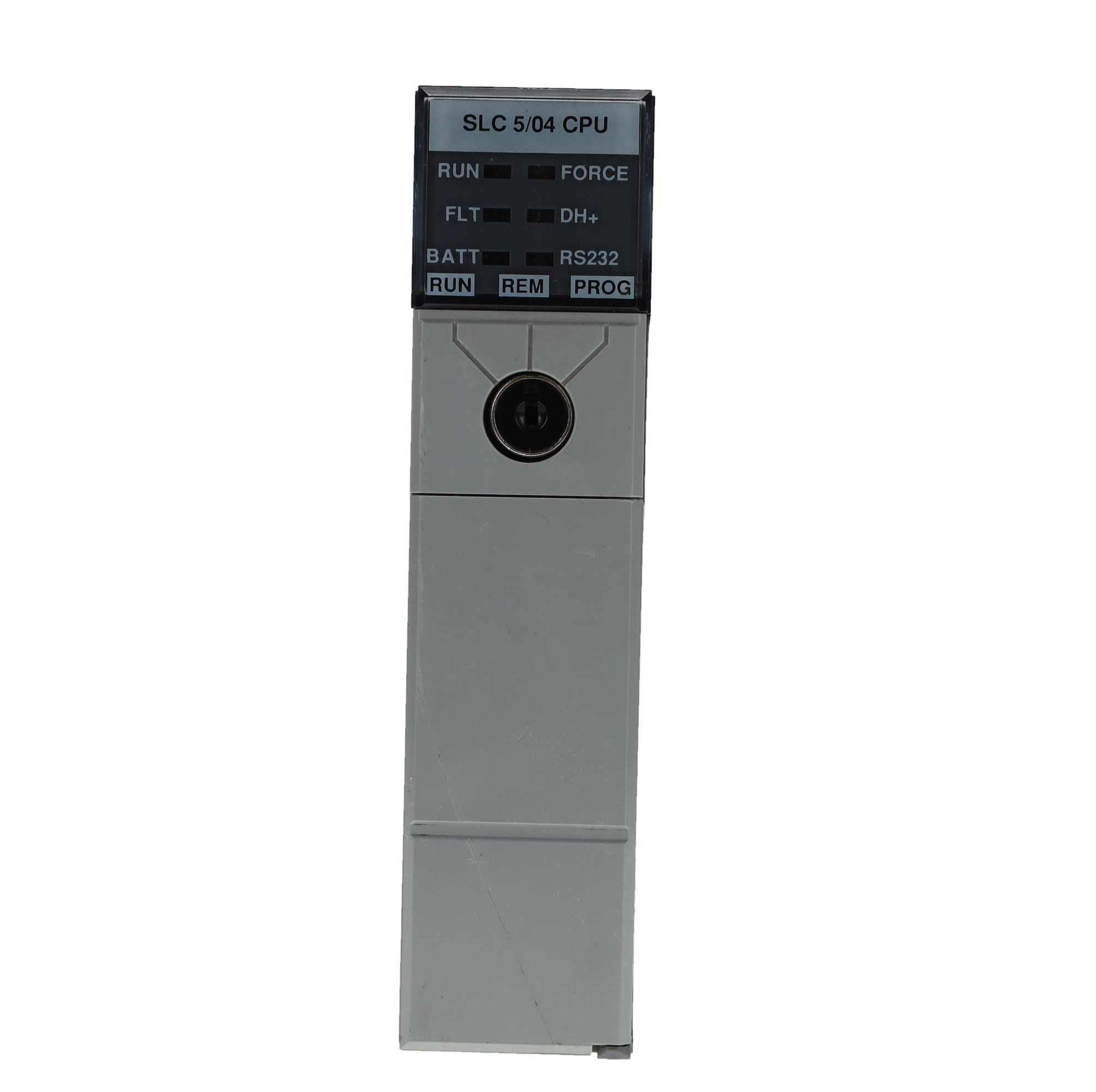

- User-Friendly Interface: Troubleshoot and diagnose with ease using the front-panel LED status indicators for RUN, FLT, BATT, FORCE, DH+, and RS-232. Plus, switch between Run, Remote, and Program modes using the 3-position key switch.
Applications: Perfect for HVAC control, SCADA systems, and material handling applications, the Allen-Bradley 1747-L541 is a versatile and reliable choice for enhancing your industrial automation capabilities.
Revisions and Alternative Names:
- Revision Series A, B, C, D
Frequently Asked Questions:
- Memory: 16,000 words
- Backup Memory: 64 KB flash
- Modes Supported: Run, Remote, Program
- Program Scan Time per Keyword: 0.9 milliseconds
- Backplane Current Load: 1 Amp at 5 Volts DC, 200 mA at 24 Volts DC
- Keyswitch: Yes, 3-position keyswitch on the front panel
