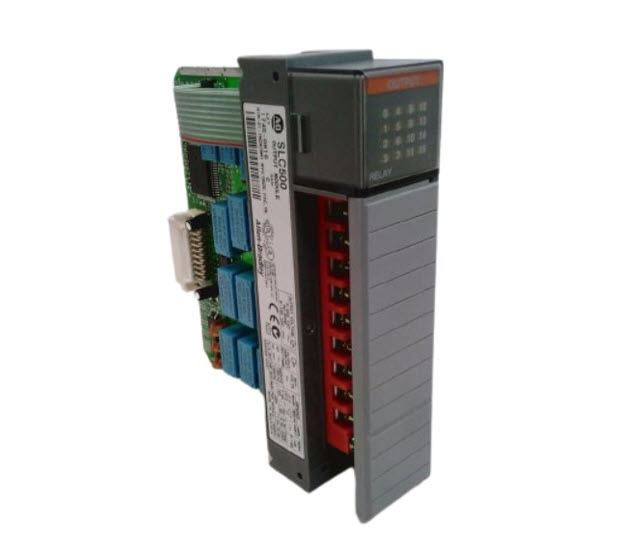

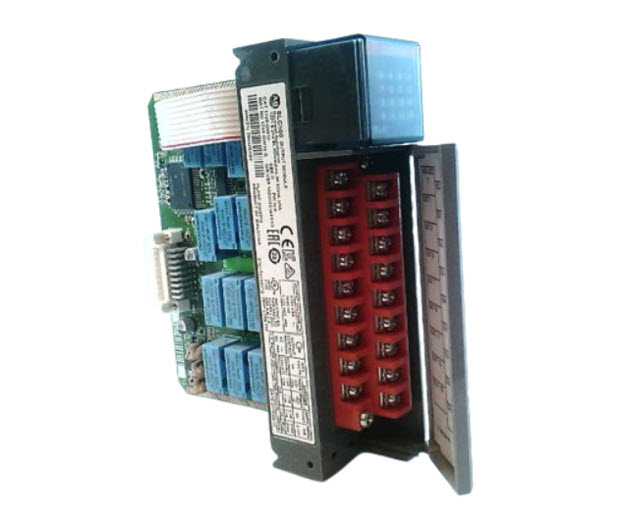

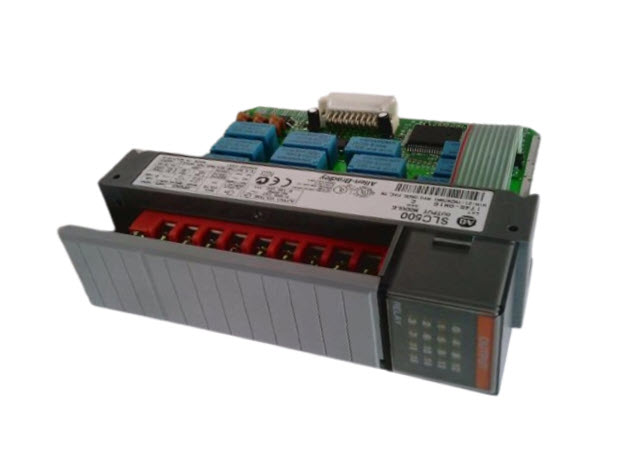

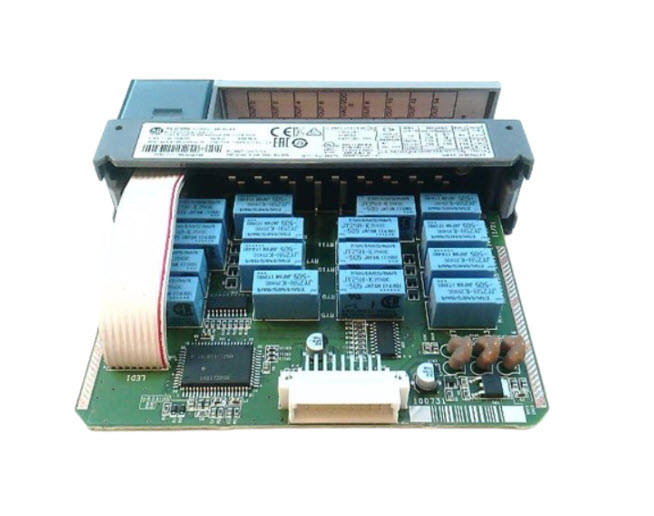

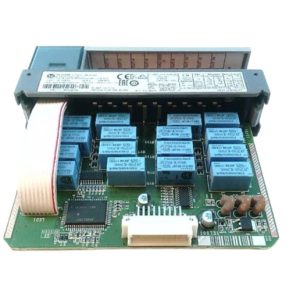

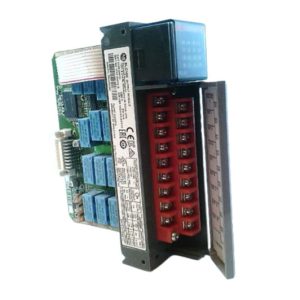

1746-OW16: SLC 16 Point Digital Output Module
Technical specifications for 1746-OW16
| Manufacturer | Rockwell Automation |
|---|---|
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1746-OW16 |
| Series | SLC 500 |
| Module Type | Digital Contact Output Module |
| Outputs | 16 |
| Operating Voltage | 5-265 Volt AC or 5-125 Volts DC |
| No. of groups | 2 |
| Points per group | 8 |
| Output Types | N.O. Relay Contact |
| Applications | Relay Contact Outputs (8 per Common) |
| Current/Output (120 VAC) | 1.5 amps |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Current/Output (24VDC) | 1.2 amps |
| UPC | 10662468067079 |
| Backplane Current | 170-180 milliamps |
| UNSPSC | 32151705 |
| Signal delay, max resistive load | On = 10.0 ms Off = 10.0 ms |
Description
The Allen-Bradley 1746-OW16 is an Allen-Bradley discrete output module used with SLC 500 product family. This module is a relay output module or sometimes referred as dry contact output module.
This module is ideal for use in applications where a mixed of voltage categories are existing. Voltage categories such as DC voltage with range of 5 -125 VDC and 5 – 265 VA. It has Two (2) input groups with One (1) common terminal per group. These groupings allow one group to operate with a DC voltage while the other group with an AC voltage. It may also be used with both DC voltage or both AC voltage inputs. Use of this module eliminates the need of implementing interposing circuitry.
When operated with 120VAC, the break Ampere rating is 15 A while the break rating is 1.5 A. For 240VAC, the make Ampere rating is 7.5 A and break Ampere rating is 0.75 A. Continuous Current for AC operation is 2.5 A. When operated with 125 VDC, make contact rating is 0.22 A and the break contact rating is 1.2 A. At 125 VDC, the continuous Current is 1.0 A and 2.0 A at 24VDC operation. Surge suppression devices is recommended to ne installed externally for each channel. Use of these devices prevents damage to the module thus, extends the module’s lifespan.
The Allen-Bradley 1746-OW16 is an in Allen-Bradley’s SLC 500 Discrete output module. It is used in This module has Sixteen (16) relay contact outputs with Two (2) groups having Eight (8) point per common.
Installation of this module requires non-exposure to chemicals as chemicals may degrade the sealing properties of the sealing materials. Inspect the module periodically for chemical damage.
The 1746-OW16 has two operating voltages: 5 – 125V DC and 5 – 265V DC. It has 10 ms signal delay in both the ON and OFF states at the maximum resistive load. The 1746-OW16 has a higher backplane current consumption compared to other relay output modules. It has 0.17A backplane current consumption at 5V DC and 0.18A backplane current consumption at 24V DC. It has a minimum load current 10 mA at 5V DC. The 1746-OW16 has maximum thermal dissipation of 5.7 W. It also has maximum continuous current per module of 16 A. Please note the continuous current per module to ensure that the continuous current per module is limited so that the module power does not exceed 1440VA.
The 1746-OW16 is easy to use. Therefore, you can set up the module by using your computer. It also has a removable terminal block which allows you to wire up any cables or jumpers to the module easily. Please secure the external connections to the module by using the sliding latches, screws, threaded connectors, or the other means for connections provided with this product.
Revisions
| Revision Part # | Also known as | |
|---|---|---|
| 1746-OW16 Ser A | 1746-OW16/A, Series A, Rev A | |
| 1746-OW16 Ser B | 1746-OW16/B, Series B, Rev B | |
| 1746-OW16 Ser C | 1746-OW16/C, Series C, Rev C | |
| 1746-OW16 Ser D | 1746-OW16/D, Series D, Rev D | |
Alternative names
- 1746-0W16
- 1746-OWL6
- 17460W16
- 1746OW16
- 1746OWL6
- 1747-OW16
- 17A6-OW16
- 17A6OW16
- L746-OW16
- L746-OWL6
- L746OW16
- L746OWL6
- L7A6-0WL6
- L7A60WL6
Troubleshooting
The 1746-OW16 is a discrete output card that allows for 5-265 VAC or 5-125 VDC
Individual card troubleshooting
- Ensure card is seen in the backplane
- Visual inspection of relays capacitors and cables
- Check pins which plug into the backplane
In this demonstration we will be using the following parts
- 1746-A7 (Rack)
- 1747-L553 (processor)
- 1746-P2 (power supply)
- Ohm Meter
Note: If the card is giving an error code try unplugging the rack and plugging it back in. If this does not work, the card is bad and should be replaced.
Testing
Lets insert the card into the rack
- Add card into I/O
- Download the program
- Go to output table
- The slot into which you inserted the card will be the word associated with the card
- Toggle bit 0
- There should be very little resistance with the output on
- All outputs will read about the same +-.2
- When off, the outputs may read either OL (open line) or nothing, depending on your meter
Technical notes
The Allen-Bradley 1746-OW16 is a SLC 500 Digital Contact Output Module. This Digital Contact Output Module has an Operating Voltage of 5-265 Volt AC or 5-125 Volts DC and 16 N.O. Relay Contact Outputs. It is intended for Relay Contact Outputs (8 per Common) Applications.
