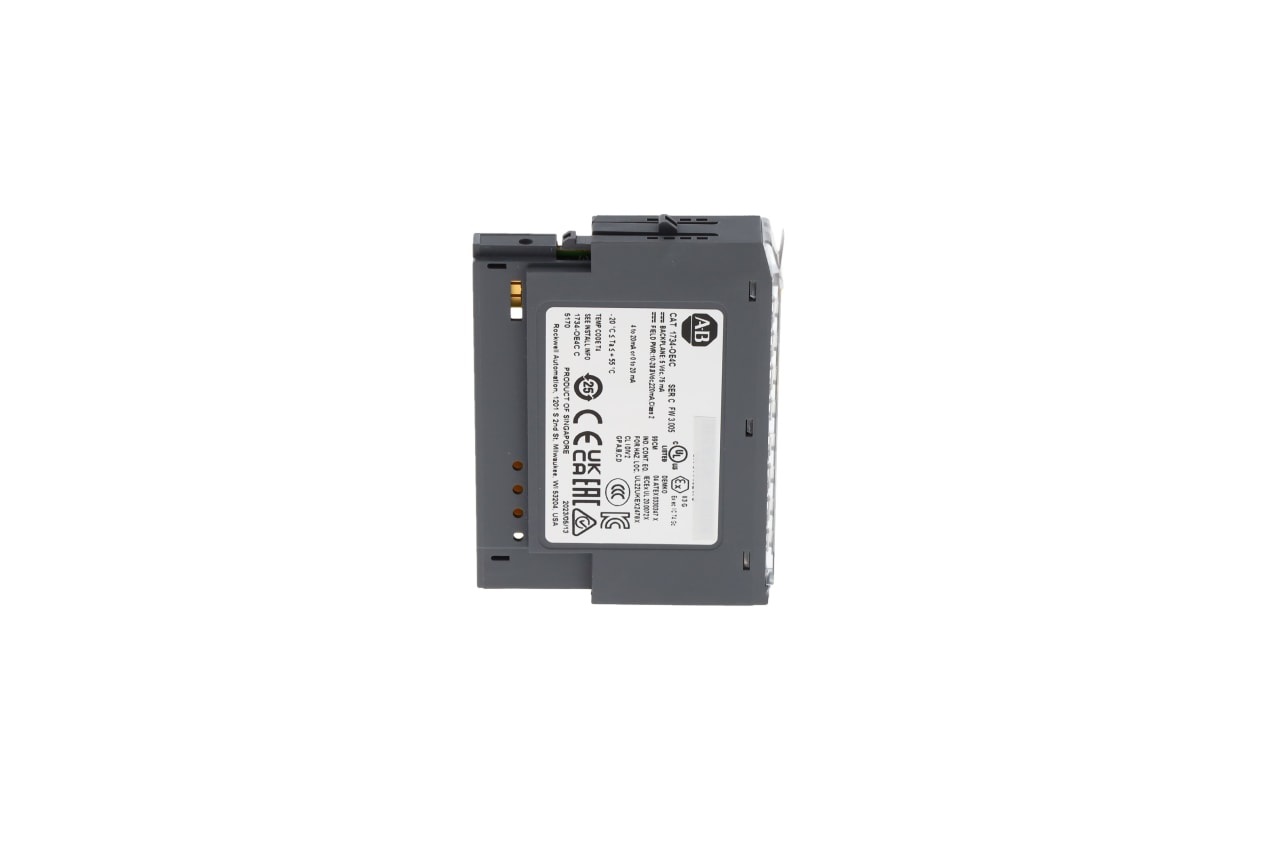

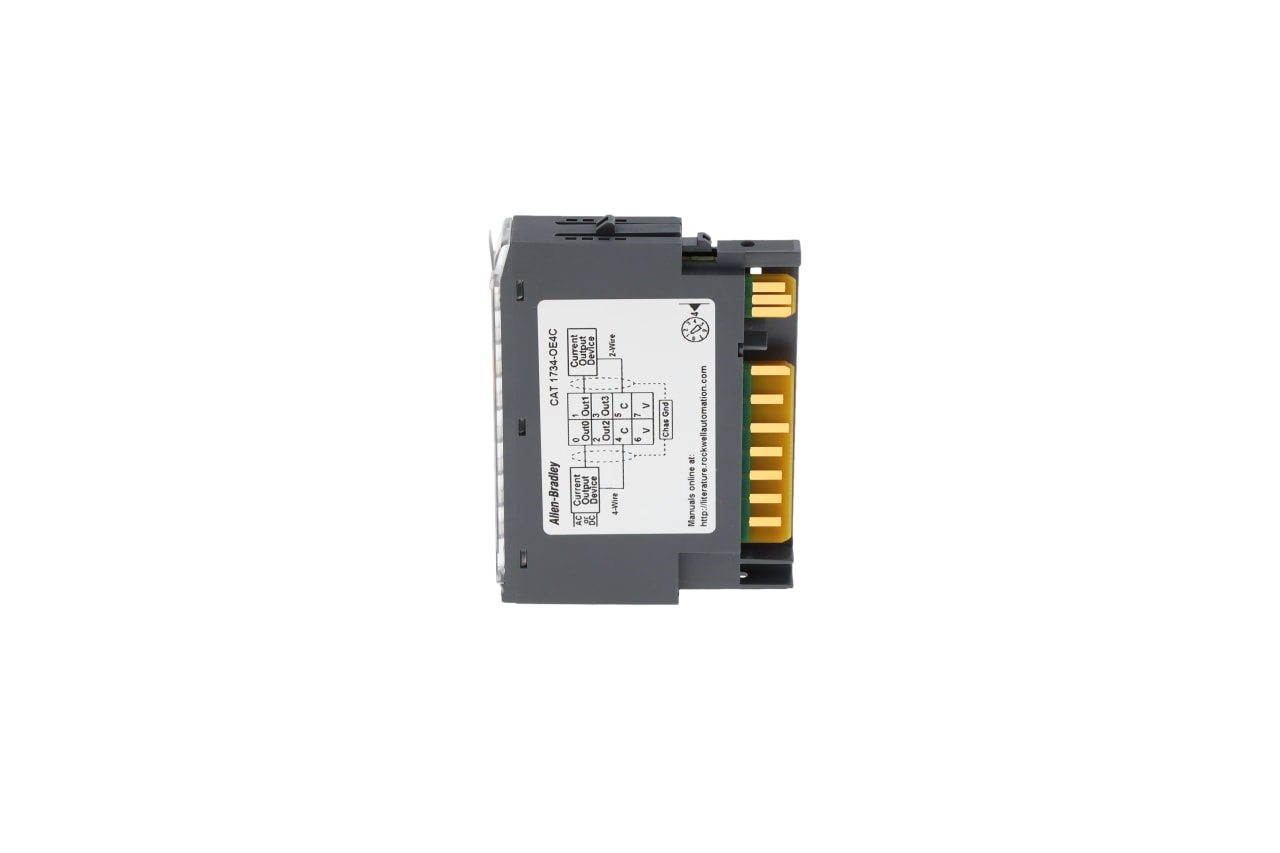

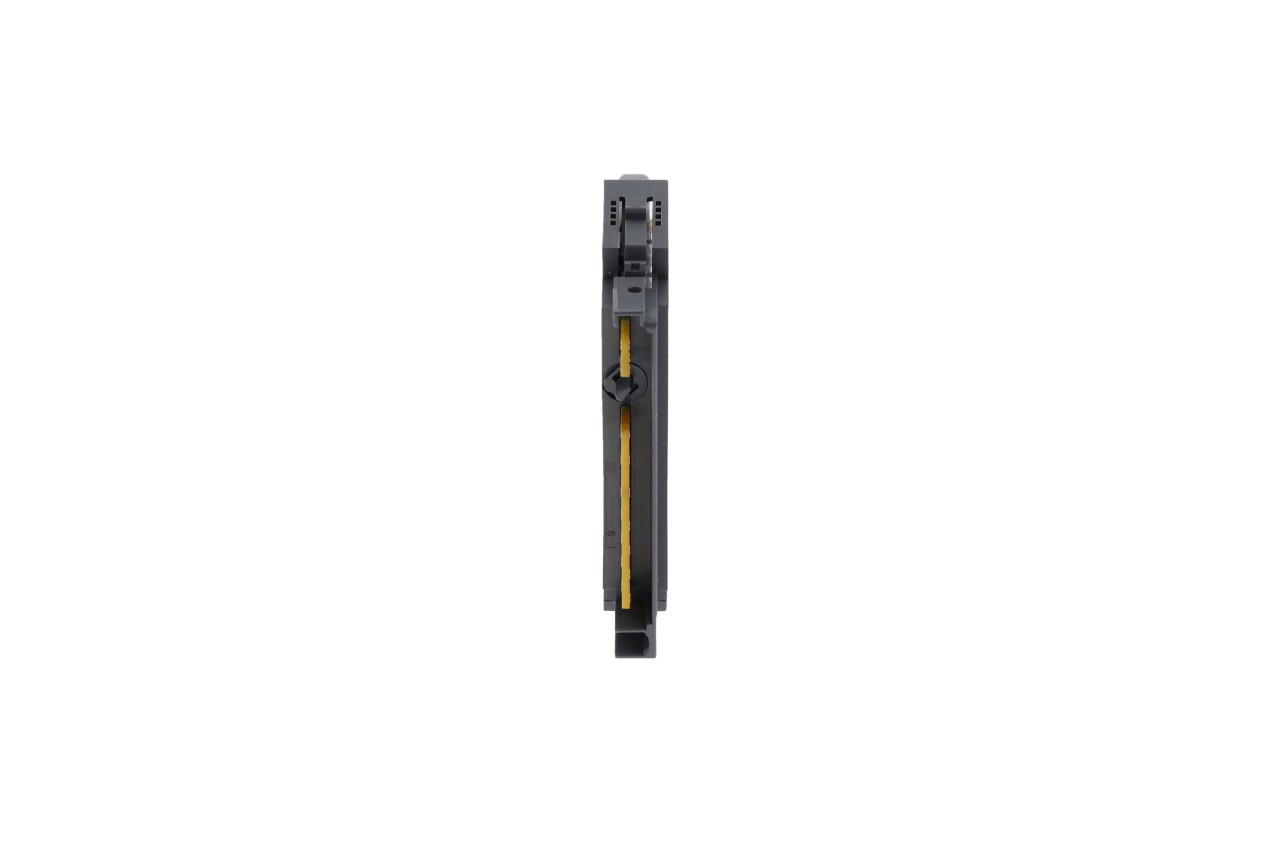

1734-OE4C Allen Bradley

The 1734-OE4C is an Allen-Bradley POINT IO module that features Four (4) single-ended, analog output modules which provide 0 to 20 mA or 4-20 mA analog electrical signals. This analog output is used for controlling processes that requires modulating control for increased accuracy, efficiency and flexible control techniques.

The module has a compact form and designed for DIN rail mounting. This module may be used with POINT IO communication adapter such as ProfiBus, ControlNet and Ethernet adapters. The 1734-OE4C memory register is accessible by connecting online to the Programmable Logic Controller’s (PLC) processor. The module’s register is composed of Channel Data and Channel Status. The module’s register size is 4 Bytes.

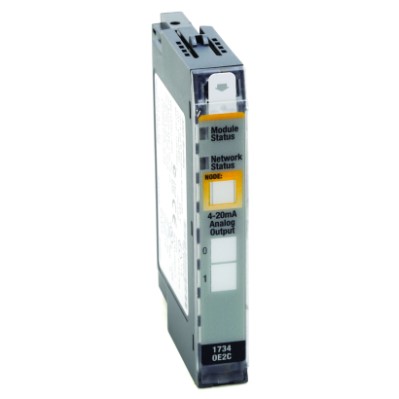

The 1734-OE4C has Module Status and Network Status indicator light as well as Status indicators for every channel. These indicators are installed on the module’s front panel to indicate the module status, network and channel activity.

Compatible wiring assembly for this analog output module are 1734-TB or 1734-TBS. The 1734-OE8C has a dimension of 56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in.) and weighs 36 g (1.235 oz). Recommended signal wire sizes for this module measures 0.25 to 2.5 mm. sq. or 22 to 14 AWG solid or stranded copper wire rated at 100 ° C (212 ° F), or greater. Recommended maximum insulation size is 1.2 mm (3/64 in.).

The Allen-Bradley 1734-OE4C POINT I/O Analog Output Module comes with Four (4) single-ended, non-isolated, current outputs. It has an output signal range of 0 to 20 mA and a default range of 4 to 20 mA with integral digital to analog converter circuit. It has an output conversion rate of up to 1 ms with an output current accuracy of 0.1% full scale at 77 degrees Fahrenheit (25 degrees Celsius). The module’s current output is 40 ms with output resolution of 16 bits over 0 to 21 mA, 2.5 microA/cnt. The converted data format is in the form of Signed Integer.

The Allen-Bradley 1734-OE4C’s point-bus current reaches up to 75mA at 5 Volts DC. It has a power dissipation of 750 Ohms on each 1.86 Watt output and 0 Ohms on each 2.15 Watt channel. The 1734-OE4C’s maximum thermal dissipation reaches up to 750 Ohms load on each output at 6.34 BTU/hour and a 0 Ohm load on each channel at 7.33 BTU/hour. Compatible terminal base for this module are 1734/TB/TBS/TOPS/TOP and installed with the keyswitch set to position 4. The module’s nominal voltage supply is 24 Volts DC with acceptable range of 10.0 to 28.8 VDC. It has an isolation voltage of 50 Volts continuous with a basic insulation type, tested to withstand 1500 Volts AC for 60 seconds.

The 1734-OE4C’s operating temperature range is -4 to 131 degrees Fahrenheit and its storage temperature range is -40 to 185 degrees Fahrenheit. It has an operating shock of 30 G and a non-operating shock of 50 G. Its relative humidity reaches up to 95% non-condensing with operating vibration of 5 G at 10 to 500 Hertz. This analog output module has an output resolution of 16 bits across 0 to 21 mA.
