1734-IR2 Technical specifications
Manufacturer | Rockwell Automation |
---|---|
Keyswitch Position | 6 |
Power Dissipation | 1.0 W @ 28.8V DC |
Module Type | RTD / Resistance input module |
Series | POINT I/O |
Part Number/Catalog No. | 1734-IR2 |
Brand | Allen-Bradley |
No. of outputs | Two (2) Single-ended, non-isolated channels |
Compatible RTD sensors | 100 Pt α = 0.00385; 200 Pt α = 0.00385; 100 Pt α = 0.003916; 200 Pt α = 0.003916; 10 Cu α = 0.00427; 100 Ni α = 0.00618; 120 Ni α = 0.00618 and 120 Ni α = 0.00672. |
Compatible Resistance input: | 0-600 Ω |
Resolution | 16 bits – 9.5 mΩ/cnt; 0.03 °C/cnt (Pt385 @ 25 °C) or 0.05 °F/cnt (Pt385 @ 77 °F) |
Absolute Accuracy | 0.1% Full Scale @ 25 Deg. Celsius |
Input step response (per channel) | 60 ms @ Notch = 50 Hz 50 ms @ Notch = 60 Hz 30 ms @ Notch = 100 Hz 25 ms @ Notch = 120 Hz 15 ms @ Notch = 200 Hz 13 ms @ Notch = 240 Hz 10 ms @ Notch = 300 Hz 8 ms @ Notch = 400 Hz 6 ms @ Notch = 480 Hz |
Input update rate per module | 40 ms @ Notch = 50 Hz 33 ms @ Notch = 60 Hz (default) 20 ms @ Notch = 100 Hz 17 ms @ Notch = 120 Hz 10 ms @ Notch = 200 Hz 8 ms @ Notch = 240 Hz 7 ms @ Notch = 300 Hz 5 ms @ Notch = 400 Hz 4 ms @ Notch = 480 Hz |
Current Draw | 220 mA @5V dc |
Dimensions | 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.) |
Enclosure type rating | None (open-style) |
Module Location | 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assembly |
Inputs | 2 Single-Ended, Non-Isolated |
Conversion Type | Delta Sigma |
Data Format | Signed Integer |
Isolation Voltage | 50 Volts Continuous |
Thermal Dissipation | 3.3 BTU/hour |
Enclosure | Open |
Weight | 0.08 pounds (0.036 kilograms) |
Dimensions (H x W x D) | 2.21 x 0.47 x 2.97 inches |
Operating Temperature | -20-55 Celsius |
UPC | 10612598269164 |

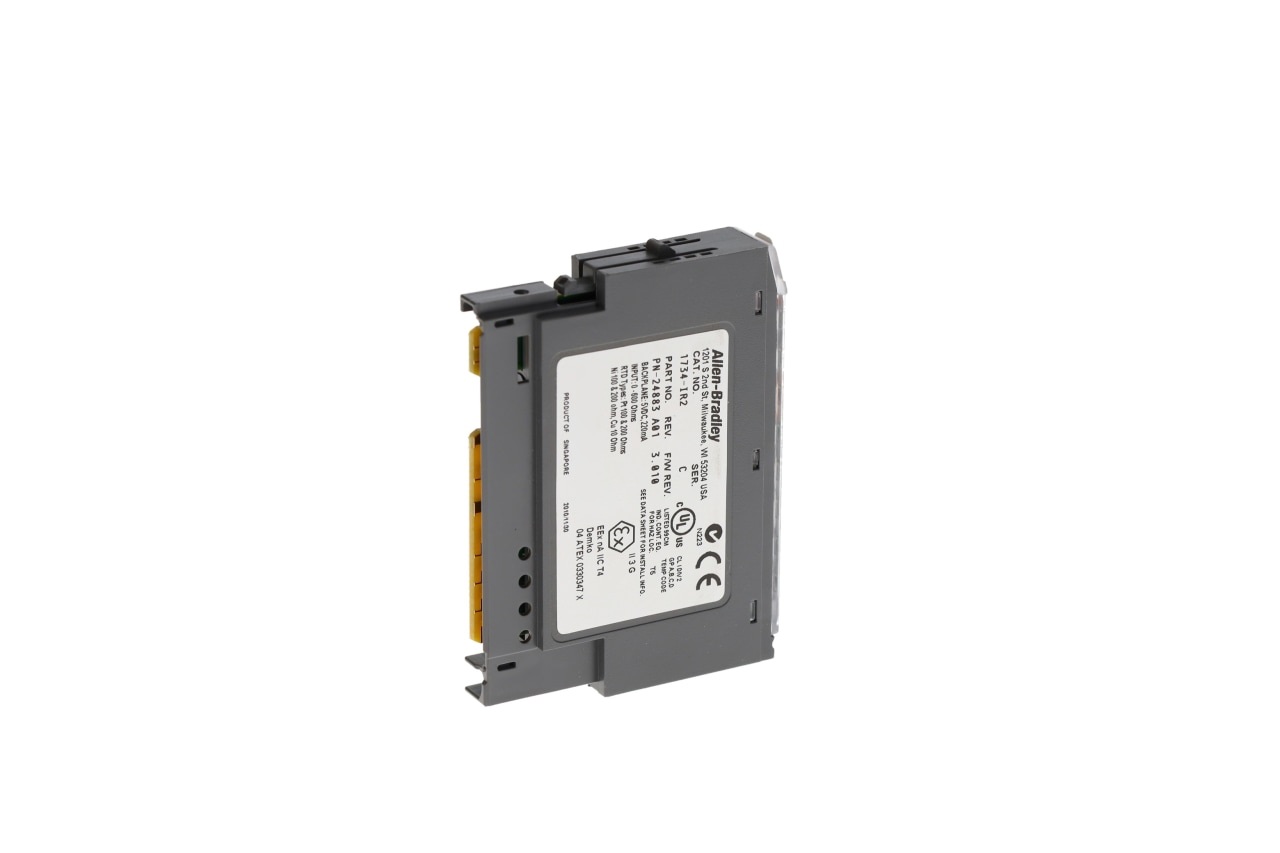

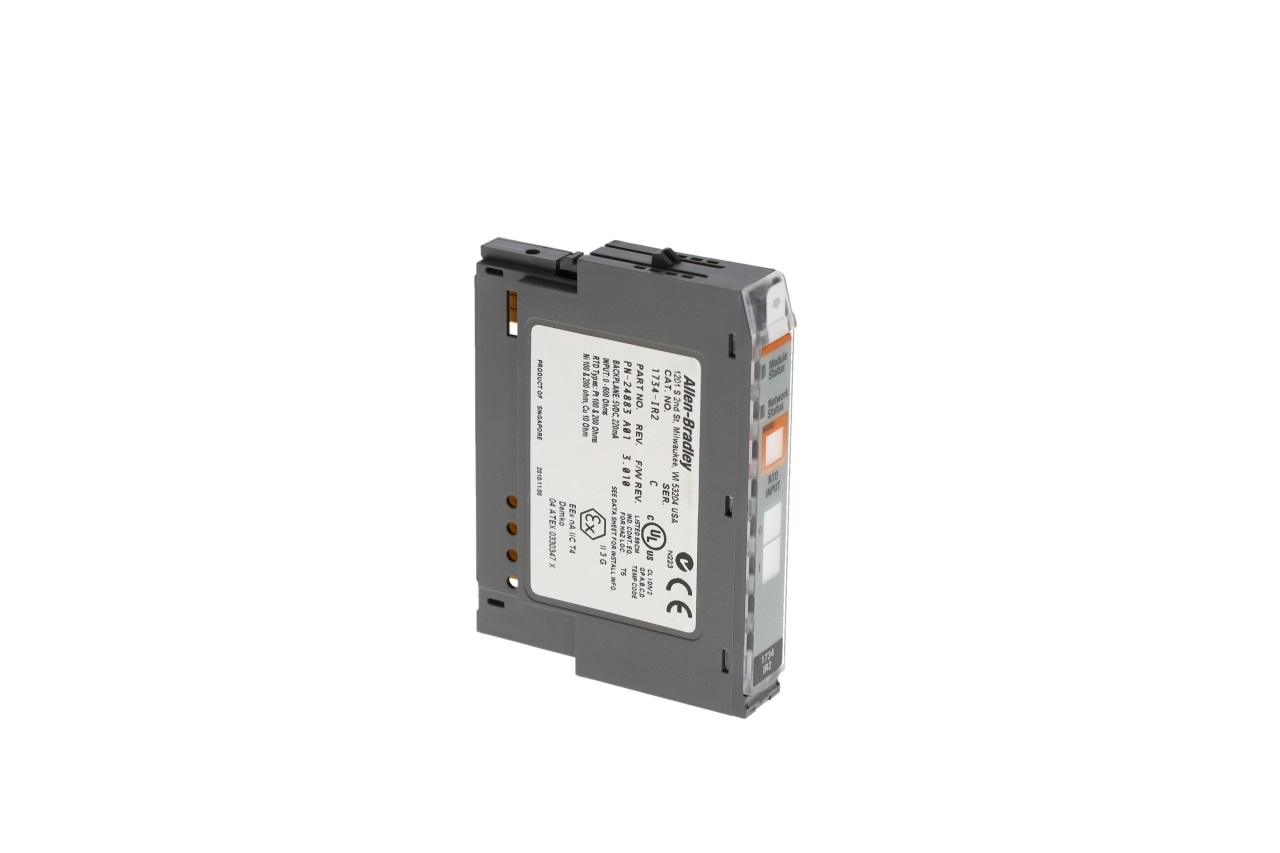

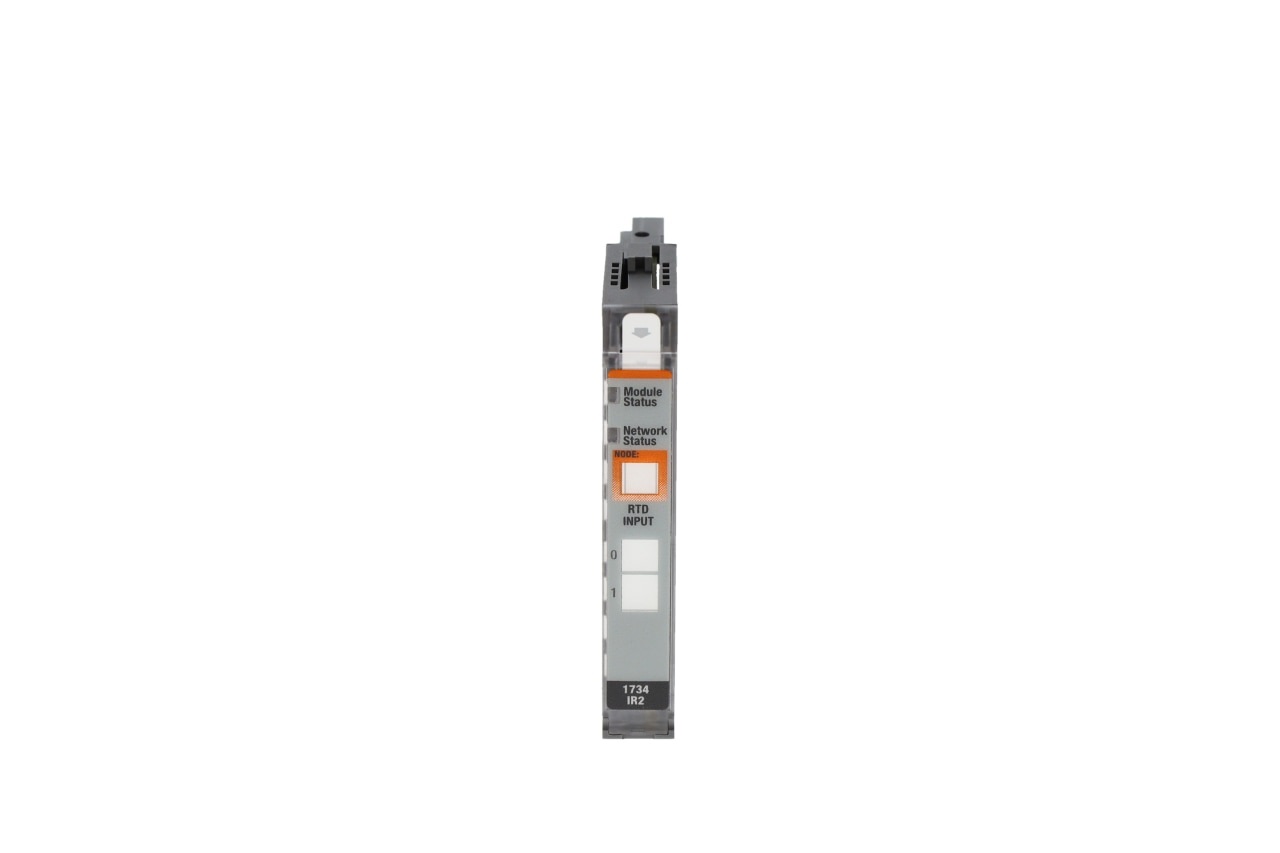

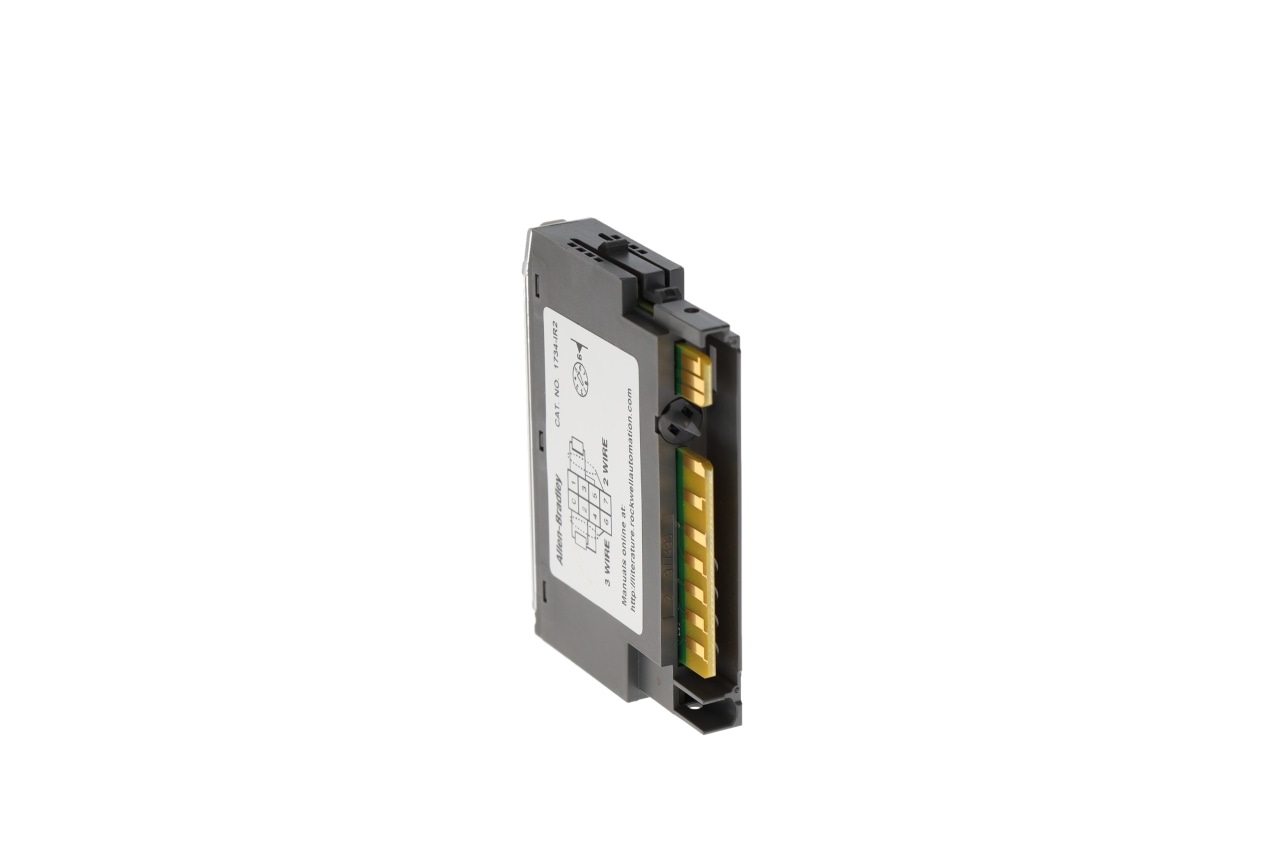

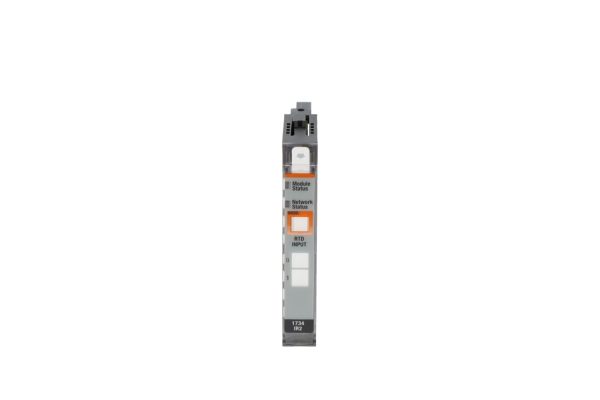

The Allen-Bradley 1734-IR2 is a POINT I/O Resistance Temperature Detector (RTD) and resistance input module. This module is ideally used for temperature applications or applications with installed transducers that provide resistance signal as feedback variable.
The 1734-IR@, being part of the POINT I/O family is a cost-effective, panel space saving module as it supports mounting to a standard 35mm DIN rail and occupies only 56 x 12 x 75.5 mm (2.21 x 0.47 x 2.97 in.). Additionally, it has an open style enclosure which means any enclosure suitable to the application area is equally usable to the 1734-IR2. The 1734-IR2 mainly features Two (2) Resistance Temperature Detector (RTD) input channels. Each input channel is compatible for direct interfacing with RTD sensors such as 100 Pt α = 0.00385; 200 Pt α = 0.00385; 100 Pt α = 0.003916; 200 Pt α = 0.003916; 10 Cu α = 0.00427; 100 Ni α = 0.00618; 120 Ni α = 0.00618 and 120 Ni α = 0.00672 sensors and direct wiring of 0-600 Ω resistance signals. This module is a 16-nit resolution analog input module ideally used for temperature applications. It has requires use of 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assembly.
The 1734-IR2 has a built-in Delta Sigma analog to digital converter with resolution of 16 bits specifically, 9.5 mΩ/cnt 0.03 °C/cnt (Pt385 @ 25 °C) [0.05 °F/cnt (Pt385 @ 77 °F). Converted data is stored as a signed integer. It has an absolute accuracy of 0.1% Full Scale @ 25 °C (77 °F). This module is factory calibrated.
The 1734-IR2 measures 2.21 x 0.47 x. 2.97 inches, it weighs 0.036 kilograms or 0.08 pounds and it has an open-type enclosure. It can be mounted using a DIN rail and it is compatible with the 1734-TB, 1734-TBS, 1734-TOP, or the 1734-TOPS terminal base unit. The resolution of the module is 16 bits at 9.5 milliohms/cnt and 0.03 degrees Celsius/cnt. It also has a Delta Sigma conversion type and a signed integer data format. Operators can choose the module’s temperature data format from four predefined scales: Celsius, Fahrenheit, Kelvin, and Rankine, and one custom scale (mV).
The 1734-IR2 module also has alarms that will alerts users to under-range, over-range, open-wire, and low or high-level conditions. There is no maximum overload input protection for the 1734-IR2 and no external DC power is required to run it. The 1734-IR2’s inputs are 15 mA 0 to 10 Volts, and +/-10 Volts, while its nominal input is 24 Volts DC. It has an input range of 0 to 600 ohms and a maximum POINTbus current of 220 mA at 5 Volts DC. The maximum power dissipation of the module is 1 Watts and the maximum thermal dissipation is 3.3 BTU/hour. It also has a non-condensing relative humidity of 5 to 95%, an operating temperature range of -20 to 55 degrees Celsius, and a storage temperature range of -40 to 85 degrees Celsius. The 1734-IR2’s operating shock rating is 30 g, its non-operating shock rating is 50 g, and its operating vibration is 5 g at 10 to 500 Hertz. The 1734-IR2 also has a continuous isolation voltage of 50 Volts from I/O to the system.
Revisions
Revision Part # | Also known as | |
---|---|---|
1734-IR2 Ser A | 1734-IR2/A, Series A, Rev A | |
1734-IR2 Ser B | 1734-IR2/B, Series B, Rev B | |
1734-IR2 Ser C | 1734-IR2/C, Series C, Rev C | |
Alternative names
- 1734IR2
- 173A-IR2
- 173AIR2
- L734-IR2
- L734IR2
- L73A-IR2
- L73AIR2
Frequently asked questions
How much data does the 1734-IR2 POINT I/O Analog Temperature Input Module produce during communication?
The 1734-IR2 POINT I/O Analog Temperature Input Module produces 6 bytes of input and fault status data.
Does the 1734-IR2 POINT I/O Analog Temperature Input Module require calibration?
The 1734-IR2 Analog Temperature Input Module is factory calibrated.
How much data does the 1734-IR2 POINT I/O Analog Temperature Input Module consume during communication?
The 1734-IR2 POINT I/O Analog Temperature Input Module does not consume data, it only produces it.
What are the supported RTD sensors by the 1734-IR2?
The 1734-IR2 is compatible with 100 Pt α = 0.00385; 200 Pt α = 0.00385; 100 Pt α = 0.003916; 200 Pt α = 0.003916; 10 Cu α = 0.00427; 100 Ni α = 0.00618; 120 Ni α = 0.00618 and 120 Ni α = 0.00672.
Does the 1734-IR2 support wiring of resistance signals?
Yes. Resistance signals ranging from 0-600 Ω is accepted by this module.
What is the resolution of the module?
The 1734-IR2 has an input resolution of 16 bits; 9.5 mΩ/cnt; 0.03 °C/cnt (Pt385 @ 25 °C) or [0.05 °F/cnt (Pt385 @ 77 °F)] .
Technical notes
The Allen-Bradley 1734-IR2 is a POINT I/O Analog Temperature Input Module. It has 2 Single-Ended, Non-Isolated Inputs and a Conversion Type of Delta Sigma with a Data Format of Signed Integer. This Analog Temperature Input Module has a 1 Watt Power Dissipation.
