ControlLogix Controllers

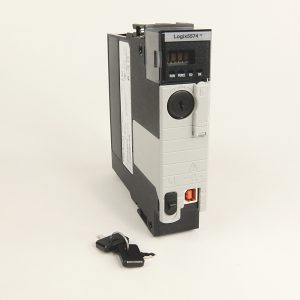

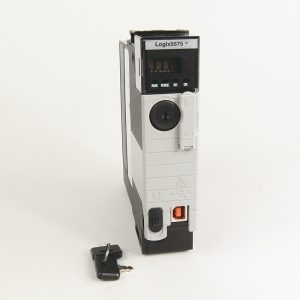

The ControlLogix® controller by Rockwell Automation is a part of the Logix platform and represents a significant advancement in PLC technology. It offers a scalable and highly flexible control solution suitable for a wide range of industrial applications. Here are some key points about the ControlLogix controllers:

1. Modular Design: The ControlLogix controller is designed to be modular, allowing it to be placed into any slot of a ControlLogix I/O chassis. This flexibility means you can tailor the controller to fit the exact needs of your application.
2. Multiple Controllers in One Chassis: You can install multiple ControlLogix controllers within the same chassis, providing a high degree of control and processing power in a compact space.
3. Scalability: The ControlLogix system is highly scalable, capable of addressing a large number of I/O points. This makes it suitable for both small and large-scale industrial processes.
4. Backplane Communication: ControlLogix controllers are able to monitor and control I/O across the ControlLogix backplane, which allows for efficient communication between the controller and the I/O modules within the same chassis.

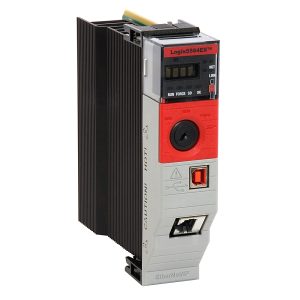

5. Network Connectivity: The ControlLogix 5580 controllers come with an embedded Ethernet port, enabling a direct connection to Ethernet-enabled devices and networks. This feature is crucial for modern industrial applications that require integration with enterprise networks or cloud services.

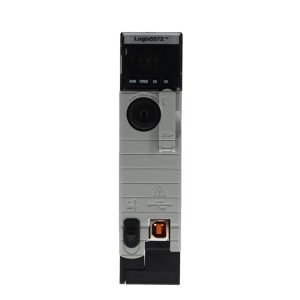

6. Communication Interface Modules: For ControlLogix 5570 or ControlLogix 5560 controllers that do not have an embedded Ethernet port, you can install the appropriate communication interface modules into the local chassis to provide the necessary network connectivity.
7. High Performance: The ControlLogix platform is known for its high-speed processing and fast scan times, which are essential for complex control applications requiring real-time or near-real-time responses.
8. Integration with Other Devices: ControlLogix controllers support communication with a wide range of devices and protocols, making it easy to integrate with existing systems or add new devices.
9. Security Features: With the increasing importance of cybersecurity in industrial automation, ControlLogix controllers come with built-in security features to protect your control system from unauthorized access and potential threats.
10. Support and Resources: Rockwell Automation provides extensive support and resources for ControlLogix controllers, including software tools for programming, monitoring, and troubleshooting.

When selecting a ControlLogix controller for your project, consider the specific model that best fits your I/O requirements, processing needs, and network connectivity options. The 5580 series, for example, offers high-performance controllers with advanced communication capabilities, while the 5570 and 5560 series may be more suitable for applications with different performance or connectivity needs. Always refer to the latest product documentation and consult with technical experts to ensure the right selection for your application.
