1794 – FLEX I/O

The 1794 FLEX™ I/O system is a versatile solution for industrial automation, designed to meet a wide range of application needs with its modular and flexible design. Here’s a detailed look at the features and capabilities of the 1794 FLEX I/O modules:

Overview of 1794 FLEX I/O Modules:

• Modular Design: Offers the flexibility to independently select I/O types, termination styles, and network interfaces, tailoring the system to specific application requirements.
• Wide Application Support: Digital, analog, and specialty modules are available to cover various industrial applications.
• Removal and Insertion Under Power (RIUP): Allows for hot-swapping of modules and making cable connections while the system is operational, enhancing maintainability and minimizing downtime.
• Extreme Environment Modules: FLEX I/O-XT™ modules are designed for harsh conditions, rated for -20 to +70 °C (-4 to +158 °F), and compatible with the ControlLogix-XT™ system.
• Conformal Coated Modules: Provide additional protection against environmental factors for applications in challenging settings.

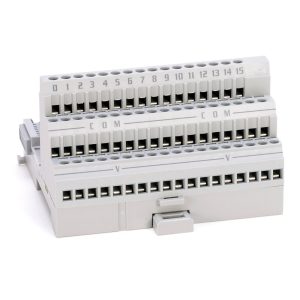

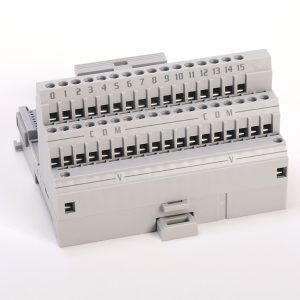

• Terminal Base Requirement: Each I/O module requires a terminal base for I/O wiring connections.

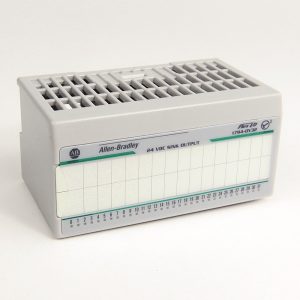

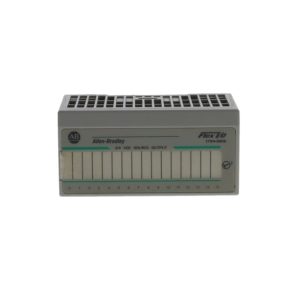

1794 FLEX I/O Digital Modules:

• Electrical Range: Covers a wide range of electrical specifications to suit different input and output needs.
• Density: Offers varying densities from 8 to 32 points per module to optimize space and cost efficiency.
• Advanced Features: Some modules include isolated inputs or outputs, protected outputs, electronic fusing, or enhanced diagnostics.

1794 FLEX I/O Analog Modules:

• Individually Configurable Channels: Allows for tailored setups for each channel within the module.
• Selectable Input Filters: Many modules feature input filters that can be adjusted to manage noise and improve signal quality.
• Input Types: Supports both single-ended and differential inputs for flexibility in signal conditioning.
• On-Board Scaling: Facilitates the conversion of raw sensor data to meaningful values.
• Internal Calibration: Enables accurate and consistent performance over time.
• Thermocouple, RTD, and HART Modules: Available for temperature sensing and process control applications, including support for the HART communication protocol.

1794 FLEX I/O Specialty Modules:

• Frequency Modules: Designed for applications requiring measurement of frequency signals.
• Very High-Speed Counter Modules: Capable of handling high-speed counting tasks, suitable for motion control and high-speed processes.
• Pulse Counter Modules: For counting pulses from sensors or other devices, useful in various monitoring and control applications.

The 1794 FLEX I/O system’s adaptability, combined with its robust feature set, makes it an excellent choice for applications that demand high flexibility, reliability, and performance in a wide range of environments. Whether for standard industrial settings or extreme environments, the 1794 FLEX I/O modules can be configured to meet the specific needs of the project.
